• Country
• Netherlands

• Manufacturer / Brand
• Velo; Barendrecht

• Year
• 1946 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 207563

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH21 UCH21 UBL21 UY1N

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

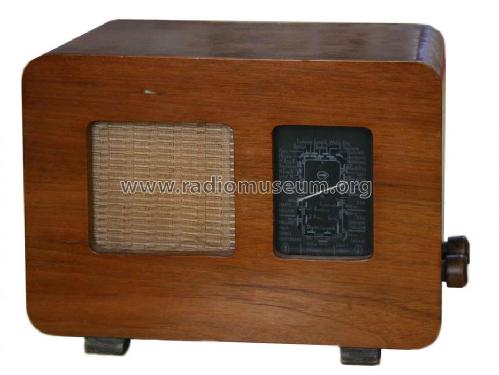

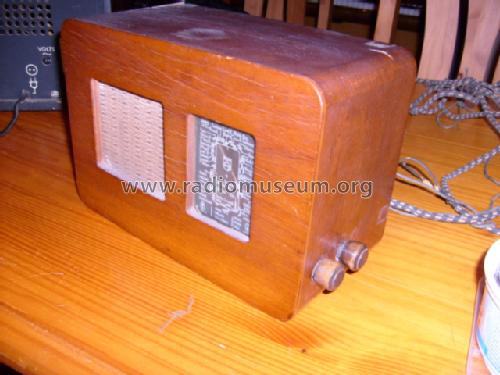

• Model: Velora Ch= Philips 208U /08 - Velo; Barendrecht

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 255 x 175 x 135 mm / 10 x 6.9 x 5.3 inch

• Notes

• This model uses the Philips 208U /08 chassis, in the Philips Apparatenblad identified as version 208U /11.

• Mentioned in
• Radio Historisch Tijdschrift, December 2011

• Literature/Schematics (1)
• Philips Apparatenblad

• Author
• Model page created by Gidi Verheijen. See "Data change" for further contributors.
