Alba Regia TA61

Alba Regia TA61; Videoton; (ID = 1189056) Television Alba Regia TA61; Videoton; (ID = 594860) Television
Alba Regia TA61; Videoton; (ID = 1196341) Television Alba Regia TA61; Videoton; (ID = 1196342) Television
Alba Regia TA61; Videoton; (ID = 1196343) Television Alba Regia TA61; Videoton; (ID = 1196344) Television
Alba Regia TA61; Videoton; (ID = 1399102) Television Alba Regia TA61; Videoton; (ID = 1399103) Television
Alba Regia TA61; Videoton; (ID = 1946928) Television
Use red slider bar for more.

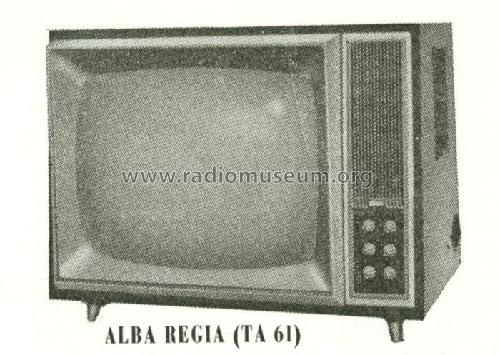

Alba Regia TA61; Videoton; (ID = 1189056) Television
Videoton;: Alba Regia TA61 [Television] ID = 1189056 933x633
Select picture or schematic to display from thumbnails on the right and click for download.
For model Alba Regia TA61, Videoton; Székesfehérvár:
Thanks for Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation.

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1960 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 17: PCC88 PCF82 EF80 EF80 EF80 PCL84 EF80 EBF80 PCL86 ECH81 ECH81 PCL82 PL36 PC92 PY88 EY86 AW53-88
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 3 Loudspeakers / Ø 16 cm = 6.3 inch
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Alba Regia TA61 - Videoton; Székesfehérvár
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 710 x 510 x 430 mm / 28 x 20.1 x 16.9 inch
Notes OIRT Kanal 1-12. Bildschirm in 59 oder 53 cm. Lautsprecher: 2× 160 mm BaFe, 1× 130 BaFe.
Net weight (2.2 lb = 1 kg) 40 kg / 88 lb 1.7 oz (88.106 lb)
Price in first year of sale 6'600.00 HUF
Source of data Radio es Televizio Vevö Keszülekek, 1960-63
Mentioned in -- Original prospect or advert

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
