Compact T320

Compact T320; Voxson F.A.R.E.T., (ID = 1103851) Television

Compact T320; Voxson F.A.R.E.T., (ID = 1103852) Television

Compact T320; Voxson F.A.R.E.T., (ID = 1103853) Television

Compact T320; Voxson F.A.R.E.T., (ID = 1103856) Television

Compact T320; Voxson F.A.R.E.T., (ID = 1103859) Television

Compact T320; Voxson F.A.R.E.T., (ID = 1103861) Television

Compact T320; Voxson F.A.R.E.T., (ID = 1103863) Television

Compact T320; Voxson F.A.R.E.T., (ID = 1103864) Television

Compact T320; Voxson F.A.R.E.T., (ID = 1103865) Television

Compact T320; Voxson F.A.R.E.T., (ID = 1103867) Television
Use red slider bar for more.
Compact T320; Voxson F.A.R.E.T., (ID = 1103851) Television
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Italy
Manufacturer / Brand:  Voxson F.A.R.E.T., Roma
Year: 1964 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 18: PC86 PC86 PCC88 9EA8 EF183 EF183 EF184 PL84 EF80 PCL86 ECC82 or 12AU7 ECC82 PCL85 EF80 25DQ6A PY88 1G3GT 19BEP4
Main principle Superheterodyne (common); ZF/IF 45750/40250 kHz
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Compact T320 - Voxson F.A.R.E.T., Roma
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 560 x 420 x 340 mm / 22 x 16.5 x 13.4 inch
Notes Cinescopio da 19" con deflessione a 110° e focalizzazione elettrostatica automatica.

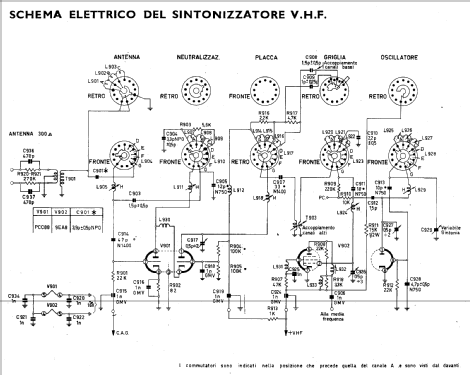

Gruppo sintonizzatore per la ricezione dei canali VHF a 13 posizioni.
Gruppo sintonizzatore a due valvole per la ricezione della gamma UHF.
Controllo automatico di guadagno ad impulsi.
Net weight (2.2 lb = 1 kg) 17 kg / 37 lb 7.1 oz (37.445 lb)

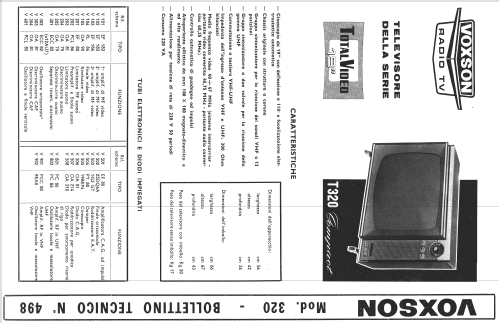

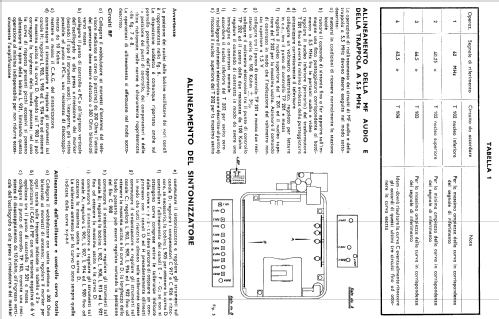

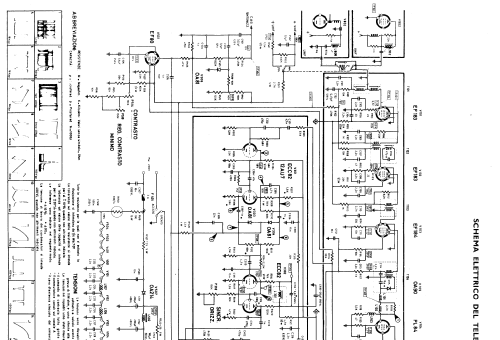

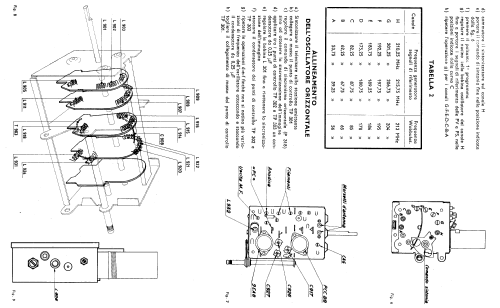

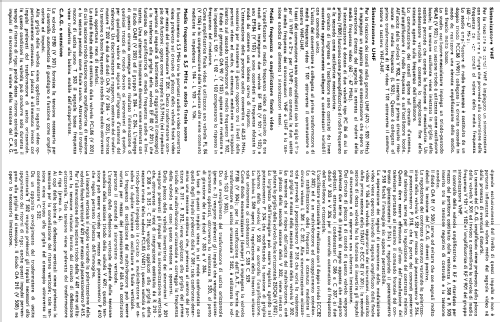

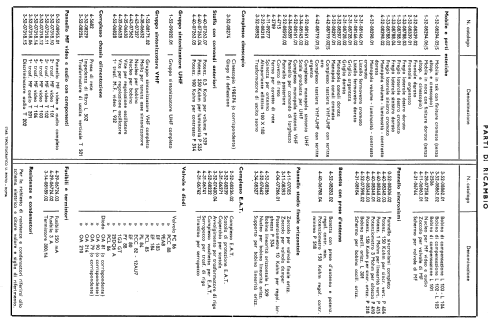

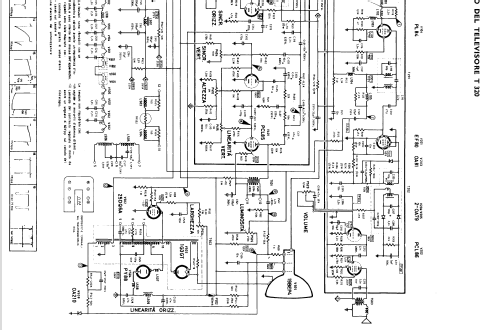

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Eduard Abfalterer. See "Data change" for further contributors.



All listed radios etc. from Voxson F.A.R.E.T., Roma
Here you find 147 models, 122 with images and 76 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
