For model Dinghy 603, Voxson F.A.R.E.T., Roma:
aus ebay, mit Erlaubnis des Verkäufers radioseller124

Country:  Italy
Manufacturer / Brand:  Voxson F.A.R.E.T., Roma
Year: 1955/1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: DK92 DL94 DF92 DAF91
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Line / Batteries (any type) / 110; 125; 140; 160/1,5 & 67,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out
from Radiomuseum.org Model: Dinghy 603 - Voxson F.A.R.E.T., Roma
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 220 x 155 x 60 mm / 8.7 x 6.1 x 2.4 inch
Notes Tre bande: OM 520-1600 KHz, OC1 5,9-6,3 MHz, OC2 11,4-12,3 MHz. Alimentatore esterno per funzionamento a tensione di rete, commutazione automatica alimentazione interna a pile ed esterna a rete.
Three Wave bands: BC 520-1600 KHz, SW1 5,9-6,3 MHz, SW2 11,4-12,3 MHz. External power supply for mains (AC).
Source of data Guida Pratica Antique Radio (1) 1999
Mentioned in - - Data from my own collection

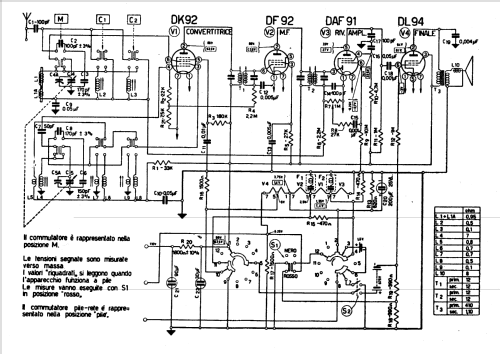

Literature/Schematics (1) Antique Radio Magazine n.67, June-July 2005, page 10. Written in Italian.

Model page created by Giuseppe Antonio Tusini. See "Data change" for further contributors.
