Mercury 314

Mercury 314; Voxson F.A.R.E.T., (ID = 1110771) Television

Mercury 314; Voxson F.A.R.E.T., (ID = 1110772) Television

Mercury 314; Voxson F.A.R.E.T., (ID = 1110773) Television

Mercury 314; Voxson F.A.R.E.T., (ID = 1110774) Television

Mercury 314; Voxson F.A.R.E.T., (ID = 1110775) Television

Mercury 314; Voxson F.A.R.E.T., (ID = 1110776) Television

Mercury 314; Voxson F.A.R.E.T., (ID = 1110777) Television

Mercury 314; Voxson F.A.R.E.T., (ID = 1110778) Television

Mercury 314; Voxson F.A.R.E.T., (ID = 1110779) Television

Mercury 314; Voxson F.A.R.E.T., (ID = 1110782) Television
Use red slider bar for more.
Mercury 314; Voxson F.A.R.E.T., (ID = 1110771) Television
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Italy
Manufacturer / Brand:  Voxson F.A.R.E.T., Roma
Year: 1965 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 17: 6AF4A PCC88 PCF80 EF80 EF80 EF80 PL84 ECC82 PCL85 PABC80 PL84 EF80 ECC82 25DQ6 PY88 1G3GT 23BCP4
Main principle Superheterodyne (common); ZF/IF 45750/40250 kHz
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Mercury 314 - Voxson F.A.R.E.T., Roma
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 730 x 530 x 360 mm / 28.7 x 20.9 x 14.2 inch
Notes Cinescopio da 23" con deflessione a 110° e focalizzazione elettrostatica automatica.
Net weight (2.2 lb = 1 kg) 29 kg / 63 lb 14 oz (63.877 lb)

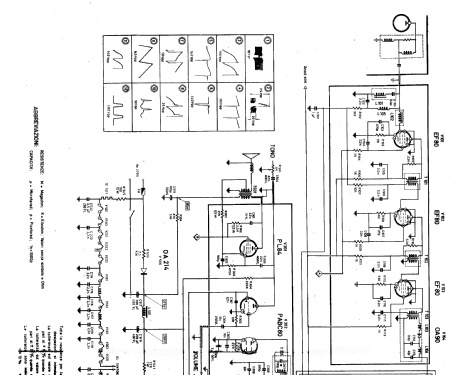

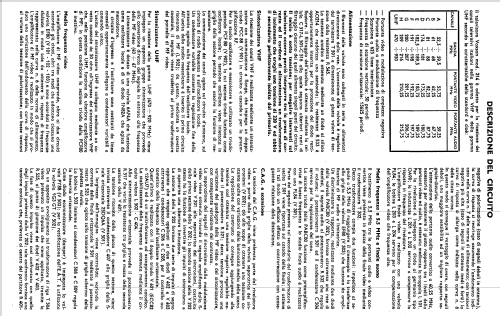

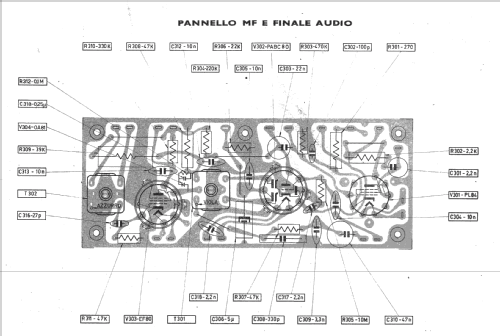

Literature/Schematics (1) -- Original-techn. papers.
