For model Sportsman 60 Ch=728, Voxson F.A.R.E.T., Roma:
Voxson mod.28 di mia proprietà

Country:  Italy
Manufacturer / Brand:  Voxson F.A.R.E.T., Roma
Year: 1958 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: OC44 OC45 OC45 OC71 OC72 OC72 GD3
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Line / Batteries (any type) / 110-220; 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
Power out
from Radiomuseum.org Model: Sportsman 60 Ch=728 - Voxson F.A.R.E.T., Roma
Material Leather / canvas / plastic - over other material
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 200 x 144 x 70 mm / 7.9 x 5.7 x 2.8 inch
Notes Transistor: SFT308 SFT307 SFT307 SFT353 SFT323 SFT323. Diode OA90.
A batteria da 9V o alimentatore CA 110-220V modello Voxson A727. Materiale: pelle. Con maniglia.
9V battery or AC supply unit for 110-220V (model Voxson A727). Leather case. With handle.
Net weight (2.2 lb = 1 kg) 1.1 kg / 2 lb 6.8 oz (2.423 lb)

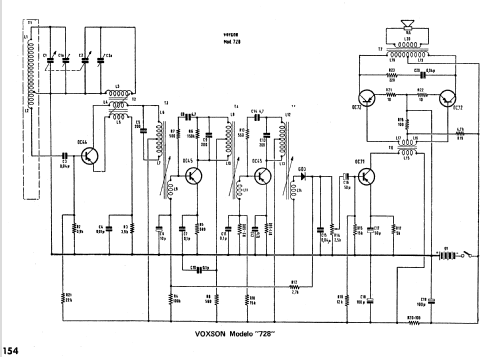

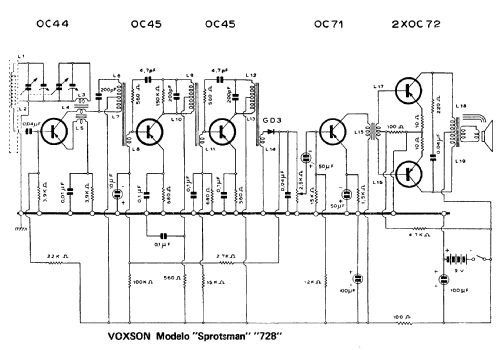

Literature/Schematics (1) -- Schematic (Antique Radio Magazine n.67, June-July 2005, page 10. Written in Italian.)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
