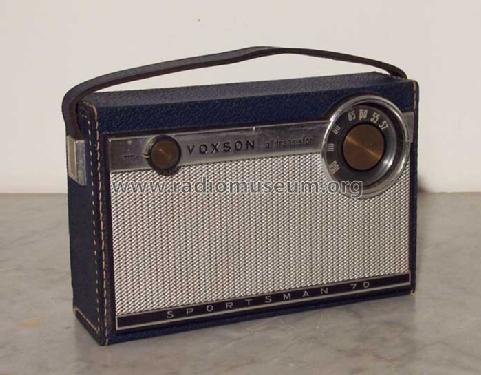

Voxson F.A.R.E.T.,: Sportsman 70 Ch= 762 [Radio] ID = 1234656 700x545
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sportsman 70 Ch= 762, Voxson F.A.R.E.T., Roma

Country:  Italy
Manufacturer / Brand:  Voxson F.A.R.E.T., Roma
Year: 1964 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: SFT308 SFT307 SFT307 SFT353 SFT323 SFT323
Main principle Superheterodyne (common); ZF/IF 460 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Line / Batteries (any type) / 110-220; (2x4,5) Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out 0.25 W (unknown quality)
from Radiomuseum.org Model: Sportsman 70 Ch= 762 - Voxson F.A.R.E.T., Roma
Material Various materials
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 210 x 135 x 65 mm / 8.3 x 5.3 x 2.6 inch
Notes A batteria da 9V o alimentatore CA 110-220V. Il ricevitore va alimentato a 9V con due batterie da 4,5V o alimentatore esterno 110-220.
2x4,5V batteries or AC supply unit for 110-220V.
Net weight (2.2 lb = 1 kg) 1.2 kg / 2 lb 10.3 oz (2.643 lb)
Price in first year of sale 31'000.00 ITL
Mentioned in -- Original prospect or advert
Literature/Schematics (1) Antique Radio Magazine - Italy, Club Antique Radio Magazine (n.67, June-July 2005, page 10. Written in Italian.)
Literature/Schematics (2) -- Schematic (D.E. Ravalico, Radio Elementi, 9° edizione, 1972, Ulrico Hoepli Editore)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
