• Year
  • 1957/1958
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 119342

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 9 (2x4.5) Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org

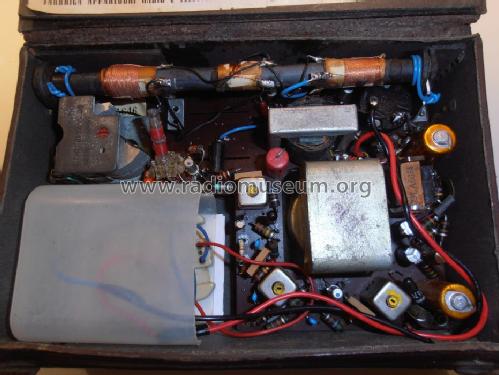

  • Model: Sportsman 727 - Voxson, FARET F.A.R.E.T.; Roma
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 197 x 130 x 60 mm / 7.8 x 5.1 x 2.4 inch
  • Notes

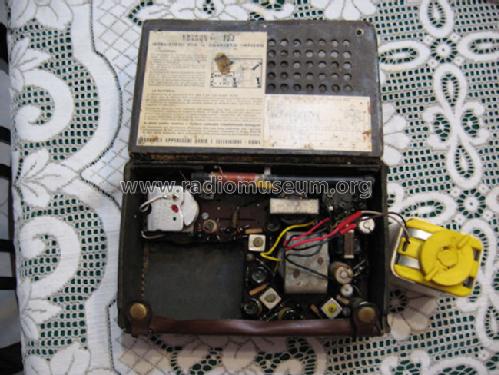

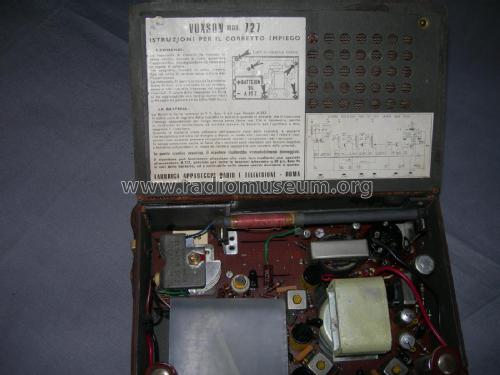

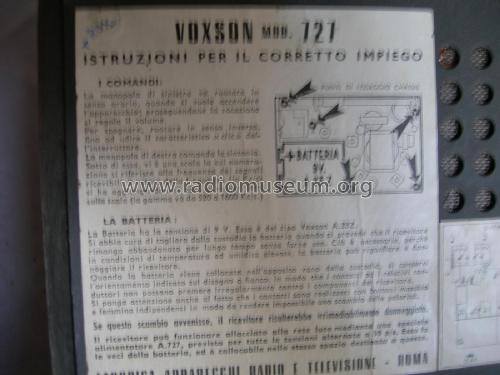

  • The circuit diagram is reported in the inside label (see picture) and doesn't look different from that of the Sportsman 60 Ch=728 (see there)
  • Net weight (2.2 lb = 1 kg)
  • 1 kg / 2 lb 3.2 oz (2.203 lb)
  • Literature/Schematics (1)
  • Antique Radio Magazine n.69, November-December 2005, page 36. Article written in Italian
  • Author
  • Model page created by Alessandro De Poi. See "Data change" for further contributors.
