Super Dinghy 604

Super Dinghy 604; Voxson F.A.R.E.T., (ID = 947651) Radio

Super Dinghy 604; Voxson F.A.R.E.T., (ID = 2470094) Radio

Super Dinghy 604; Voxson F.A.R.E.T., (ID = 2470096) Radio
Super Dinghy 604; Voxson F.A.R.E.T., (ID = 1177793) Radio Super Dinghy 604; Voxson F.A.R.E.T., (ID = 1177794) Radio
Super Dinghy 604; Voxson F.A.R.E.T., (ID = 1177795) Radio Super Dinghy 604; Voxson F.A.R.E.T., (ID = 1177796) Radio
Use red slider bar for more.

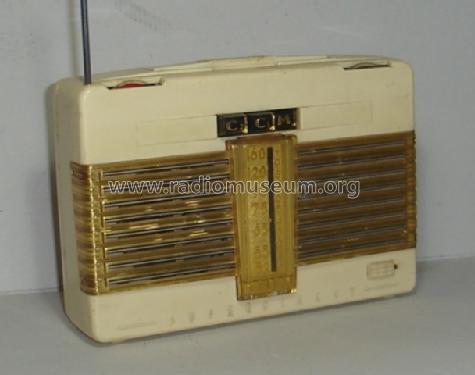

Super Dinghy 604; Voxson F.A.R.E.T., (ID = 1177793) Radio
Voxson F.A.R.E.T.,: Super Dinghy 604 [Radio] ID = 1177793 609x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super Dinghy 604, Voxson F.A.R.E.T., Roma:
prospetto

Country:  Italy
Manufacturer / Brand:  Voxson F.A.R.E.T., Roma
Year: 1955/1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: DK96 DF96 DAF96 DL96
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Line / Batteries (any type) / (110-220) / 67,5 + 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Super Dinghy 604 - Voxson F.A.R.E.T., Roma
Material Bakelite or Plastics (type unknown)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 220 x 160 x 66 mm / 8.7 x 6.3 x 2.6 inch
Notes Alimentatore per funzionamento a rete.
Power supply for mains operation.
Source of data Guida Pratica Antique Radio (1) 1999
Mentioned in Antique Radio Magazine - Italy, Club Antique Radio Magazine (n.67, June-July 2005, page 10)
Literature/Schematics (1) -- Schematic (D.E. Ravalico, Il Radiolibro, 16° edizione, 1957, Hoepli)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
