• Country
• Germany

• Manufacturer / Brand
• Wandel & Goltermann; Reutlingen

• Year
• 1956–1961

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 21468

• • alternative name: Wago Wandel & Goltermann

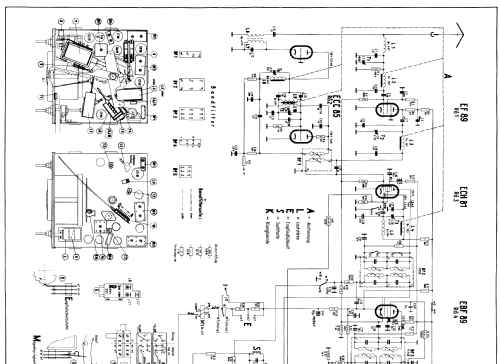

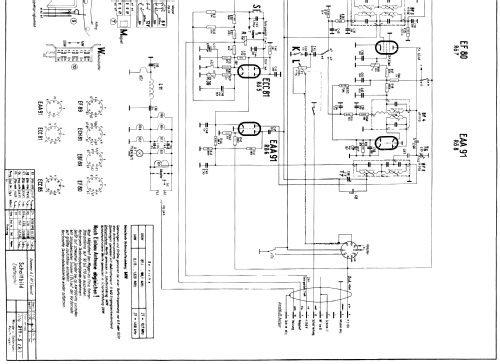

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• ECC85 EF89 ECH81 EBF89 EF80 EAA91 EAA91 ECC81 ECC83 EL84 EL84

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Tuned circuits
• 7 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Storage and/or dry batteries / 12 Volt

• Material
• Metal case

• from Radiomuseum.org
• Model: Gamma-Tourist - Wandel & Goltermann;

• Notes

• Zerhacker = Kaco C602/12 Siehe auch neue Bestückung bei «T».

  Schaltpläne bei Gamma A

• Price in first year of sale
• 1,040.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1957/58 / Radiokatalog Band 2, Ernst Erb
