2-568 Ch= 2-56
- United States of America (USA)
- Manufacturer / Brand
- Warwick Mfg. Corp., Chicago (Clarion)
- 1942 ?
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- alternative name: Templeton

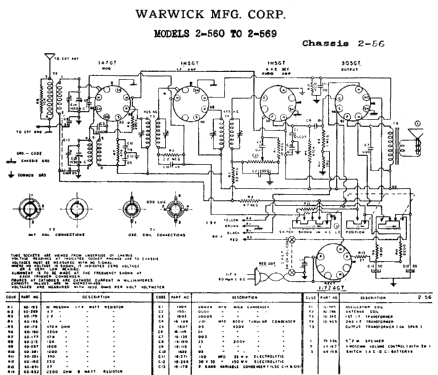

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line / Batteries (any type) / 117V AC/DC / 90 & 1.5 Volt
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- from Radiomuseum.org
- Model: 2-568 Ch= 2-56 - Warwick Mfg. Corp., Chicago
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 13 = 1942 and before
- Literature/Schematics (1)
- Riders 13-7
