• Country
• United States of America (USA)

• Manufacturer / Brand
• Warwick Mfg. Corp., Chicago (Clarion)

• Year
• 1938 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 65142

• • alternative name: Templeton

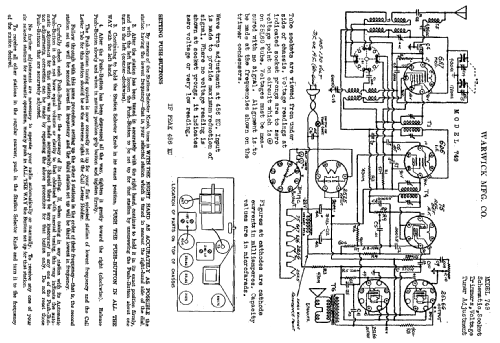

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6A7 6D6 75 25L6G 25L6G 25Z5

• Number of Transistors

• Semiconductors
• BM17C

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 105-130 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• from Radiomuseum.org
• Model: Clarion 749 [early] - Warwick Mfg. Corp., Chicago

• Notes
• Push-button tuning.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 9 = 1938 and before

• Literature/Schematics (1)
• Riders 9-9 ; 10-30
