Carina II 1084

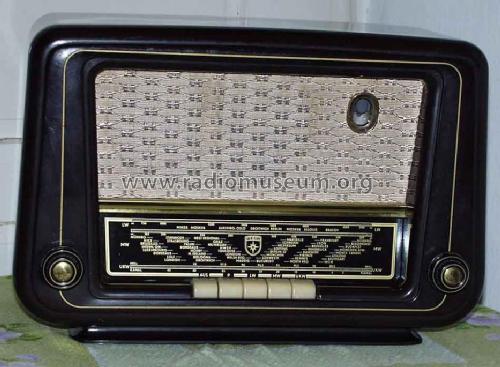

Carina II 1084; Wega, (ID = 65943) Radio Carina II 1084; Wega, (ID = 65978) Radio
Carina II 1084; Wega, (ID = 65979) Radio Carina II 1084; Wega, (ID = 65980) Radio
Carina II 1084; Wega, (ID = 938962) Radio Carina II 1084; Wega, (ID = 938963) Radio

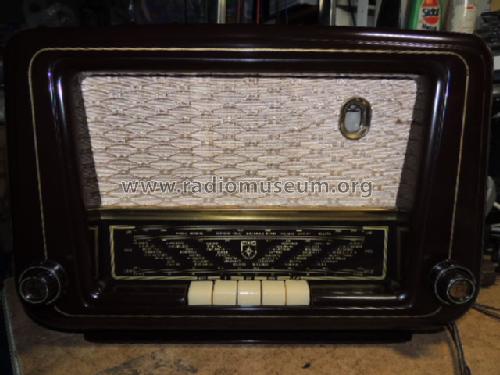

Carina II 1084; Wega, (ID = 1437008) Radio Carina II 1084; Wega, (ID = 1788575) Radio
Carina II 1084; Wega, (ID = 1788578) Radio Carina II 1084; Wega, (ID = 2497064) Radio
Use red slider bar for more.
Carina II 1084; Wega, (ID = 65943) Radio
Wega,: Carina II 1084 [Radio] ID = 65943 400x300
Select picture or schematic to display from thumbnails on the right and click for download.
For model Carina II 1084, Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach:
Quelle: Ebay

Country:  Germany
Manufacturer / Brand:  Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
alternative name

Württemb. Radio-Ges.mbH; Stuttgart
Year: 1955/1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EABC80 EM80 EL84 EZ80
schematic requested
Main principle Superheterodyne (common); ZF/IF ?/ 10700 kHz
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Carina II 1084 - Wega, Württembergische Radio-
Material Moulded (Bakelite or Plastics)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 420 x 290 x 220 mm / 16.5 x 11.4 x 8.7 inch
Notes

EM80 anstatt der EM85.

Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Price in first year of sale 199.00 DM
Mentioned in HdB d.Rdf-& Ferns-GrH 1955/56 (p.56)

Model page created by Peter Breu. See "Data change" for further contributors.
