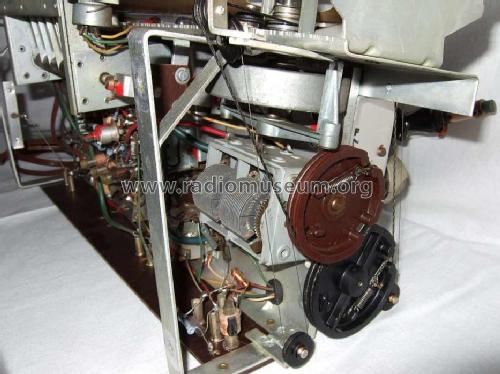

Wegaphon T56 1078; Wega, (ID = 588489) Radio Wegaphon T56 1078; Wega, (ID = 588490) Radio
Wegaphon T56 1078; Wega, (ID = 588491) Radio Wegaphon T56 1078; Wega, (ID = 588493) Radio
Wegaphon T56 1078; Wega, (ID = 1507508) Radio Wegaphon T56 1078; Wega, (ID = 1507509) Radio
Use red slider bar for more.
Wegaphon T56 1078; Wega, (ID = 588483) Radio
Wega,: Wegaphon T56 1078 [Radio] ID = 588483 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model Wegaphon T56 1078, Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

Country:  Germany
Manufacturer / Brand:  Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
alternative name

Württemb. Radio-Ges.mbH; Stuttgart
Year: 1955/1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM80 EL84
Main principle Superheterodyne (common); ZF/IF 473/10700 kHz
Tuned circuits 6 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker 2 Loudspeakers
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Wegaphon T56 1078 - Wega, Württembergische Radio-
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 630 x 400 x 320 mm / 24.8 x 15.7 x 12.6 inch
Notes

Dieses Gerät Wegaphon T56 hat eine EM80, 7 Tasten, Knöpfe auf der Skala.

Bei UKW-Betrieb wird das Triodensystem der ECH81 als zusätzliche NF-Verstärkerstufe nach dem Ratio-Detektor geschaltet.

Net weight (2.2 lb = 1 kg) 18 kg / 39 lb 10.4 oz (39.648 lb)
Price in first year of sale 399.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1955/56
