D3a

Information - Help
ID = 19218

Country:
Europe
Brand: Common type Europe tube/semicond.
Developer: Siemens; D (S.& Halske / S. Electrogeräte)
Tube type:  Vacuum Pentode   RF/IF-Stage
Identical to D3a

Base Noval, B9A
Was used by Telephony
Filament Vf 6.3 Volts / If 0.315 Ampere / Indirect / Parallel, (AC/DC)
Description

Designed for a life of >10,000 hours in rf broadband telecommunications equipment.
Capable of maintaining characteristics even under cut-off conditions. (GEC/MOV data 1964)


Text in other languages (may differ)
Dimensions (WHD)
incl. pins / tip
22 x 62 x mm / 0.87 x 2.44 x inch
Weight 16 g / 0.56 oz
Tube prices 7 Tube prices (visible for members only)
Information source - - Manufacturers Literature
  D3a: P.ST
Peter Steffen

D3a: scc
Christian Schaufelberger

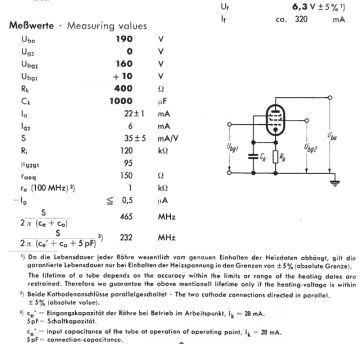

D3a: Telefunken, Spezialröhren 1962/63
Michael Schlör


D3a: Manufacturer's Literature
Emilio Ciardiello


from Just Qvigstad

Usage in Models 1= 1958 ; 1= 1961 ; 1= 1962?? ; 1= 1964 ; 1= 1965?? ; 1= 1966

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):6
