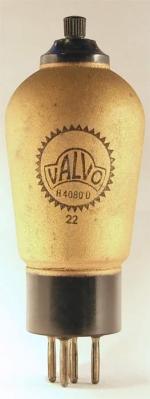

H4080D

Information - Help
ID = 1349

Country:
Germany
Brand: Valvo GmbH, Radioröhrenfabrik; Hamburg
Tube type:  Screen-grid Tetrode   RF/IF-Stage
Identical to H4080D = RENS1204 = E442S = S410N = 4S120
First year 1929 Tube leaflet collection E.Erb Analysis by original leaflets
Successor Tubes H4111D

Base Europe 5-Pin , B5 (Eu O, F, O5A) 1928 (Codex=Fc)
Was used by Radio/TV-reception etc.
Filament Vf 4 Volts / If 1 Ampere / Indirect / Specified voltage AC/DC
Tube prices 4 Tube prices (visible for members only)
Information source Taschenbuch zum Röhren-Codex 1948/49

H4080D: Walter Wiesmüller
Egon Strampe

9_19.png H4080D: Telefunken Werkstattbuch
Wolfgang Bauer


Just Qvigstad
H4080D: Valvo-Röhren-Daten 1934
Jacob Roschy

More ...

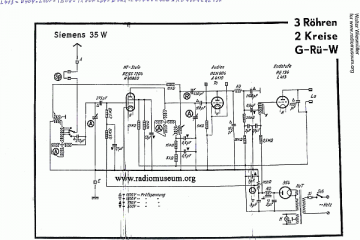

Usage in Models 3= 1930 ; 1= 1932? ; 3= 1933 ; 1= 1934

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):8
