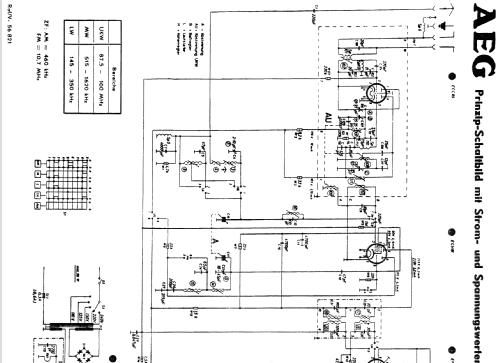

5056WD; AEG Radios Allg. (ID = 309857) Radio

5056WD; AEG Radios Allg. (ID = 309859) Radio

5056WD; AEG Radios Allg. (ID = 11785) Radio

5056WD; AEG Radios Allg. (ID = 1407498) Radio

5056WD; AEG Radios Allg. (ID = 1407499) Radio
5056WD; AEG Radios Allg. (ID = 1477923) Radio 5056WD; AEG Radios Allg. (ID = 619949) Radio
5056WD; AEG Radios Allg. (ID = 1477937) Radio 5056WD; AEG Radios Allg. (ID = 1477918) Radio
5056WD; AEG Radios Allg. (ID = 15897) Radio 5056WD; AEG Radios Allg. (ID = 15898) Radio
5056WD; AEG Radios Allg. (ID = 619950) Radio 5056WD; AEG Radios Allg. (ID = 1477929) Radio
5056WD; AEG Radios Allg. (ID = 1477946) Radio 5056WD; AEG Radios Allg. (ID = 1477952) Radio
Use red slider bar for more.
5056WD; AEG Radios Allg. (ID = 1477923) Radio
AEG Radios Allg.: 5056WD [Radio] ID = 1477923 933x717
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5056WD, AEG (Radios) Allg.Elektricitäts-Ges.

Country:  Germany
Manufacturer / Brand:  AEG (Radios) Allg.Elektricitäts-Ges.
Year: 1956/1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM80 EL84
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker 3 Loudspeakers
Power out 4 W (unknown quality)
from Radiomuseum.org Model: 5056WD - AEG Radios Allg.Elektricitäts-
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 480 x 340 x 205 mm / 18.9 x 13.4 x 8.1 inch
Notes UKW-Skala mit Kanaleinteilung und mattiertem Streifen zum Selbsteintragen der UKW-Stationen.
Chassis baugleich mit Telefunken Gavotte 7.
Net weight (2.2 lb = 1 kg) 7.6 kg / 16 lb 11.8 oz (16.74 lb)
Price in first year of sale 279.00 DM
Source of data HdB d.Rdf-& Ferns-GrH 1956/57 / Radiokatalog Band 1, Ernst Erb
