3D Raumklang-Super 5086WD

3D Raumklang-Super 5086WD; AEG Radios Allg. (ID = 617576) Radio

3D Raumklang-Super 5086WD; AEG Radios Allg. (ID = 617577) Radio

3D Raumklang-Super 5086WD; AEG Radios Allg. (ID = 11775) Radio

3D Raumklang-Super 5086WD; AEG Radios Allg. (ID = 11776) Radio
3D Raumklang-Super 5086WD; AEG Radios Allg. (ID = 61) Radio 3D Raumklang-Super 5086WD; AEG Radios Allg. (ID = 3218) Radio
3D Raumklang-Super 5086WD; AEG Radios Allg. (ID = 149626) Radio 3D Raumklang-Super 5086WD; AEG Radios Allg. (ID = 149627) Radio
3D Raumklang-Super 5086WD; AEG Radios Allg. (ID = 149628) Radio 3D Raumklang-Super 5086WD; AEG Radios Allg. (ID = 149631) Radio
3D Raumklang-Super 5086WD; AEG Radios Allg. (ID = 149633) Radio
Use red slider bar for more.
3D Raumklang-Super 5086WD; AEG Radios Allg. (ID = 61) Radio

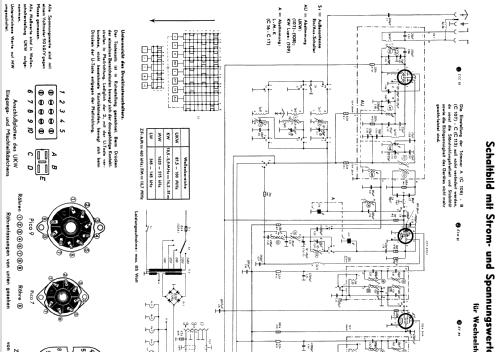

AEG Radios Allg.: 3D Raumklang-Super 5086WD [Radio] ID = 61 700x508
Select picture or schematic to display from thumbnails on the right and click for download.
For model 3D Raumklang-Super 5086WD, AEG (Radios) Allg.Elektricitäts-Ges.

Country:  Germany
Manufacturer / Brand:  AEG (Radios) Allg.Elektricitäts-Ges.
Year: 1956/1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: ECC85 ECH81 EF89 EF89 EM80 EABC80 EC92 EL84 EL84
Semiconductors (the count is only for transistors) B250C125
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 8 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker 6 Loudspeakers
Power out 10 W (unknown quality)
from Radiomuseum.org Model: 3D Raumklang-Super 5086WD - AEG Radios Allg.Elektricitäts-
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 660 x 440 x 280 mm / 26 x 17.3 x 11 inch
Notes

UKW-Skala mit Kanaleinteilung und mattiertem Streifen zum Selbsteintragen der UKW-Stationen; KW-Lupe.

Chassis baugleich mit Telefunken Opus 7.

Net weight (2.2 lb = 1 kg) 16.5 kg / 36 lb 5.5 oz (36.344 lb)
Price in first year of sale 519.00 DM
Source of data HdB d.Rdf-& Ferns-GrH 1956/57 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange Schaltungen der Funkindustrie, Buch 1
Literature/Schematics (1) -- Original-techn. papers.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
