6087WD; AEG Radios Allg. (ID = 103580) Radio
AEG Radios Allg.: 6087WD [Radio] ID = 103580 523x340

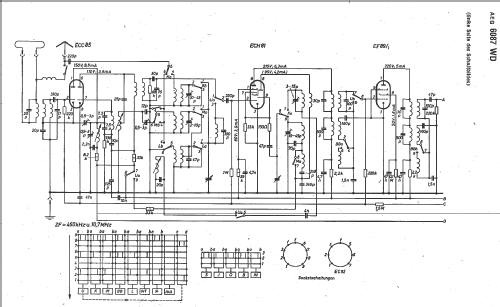

Select picture or schematic to display from thumbnails on the right and click for download.
For model 6087WD, AEG (Radios) Allg.Elektricitäts-Ges.:

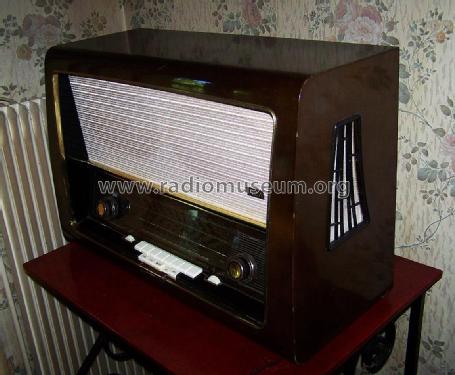

Gerät eines Bekannten von mir Fotographiert.

Country:  Germany
Manufacturer / Brand:  AEG (Radios) Allg.Elektricitäts-Ges.
Year: 1957/1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: ECC85 ECH81 EF89 EF89 EM80 EABC80 EC92 EL84 EL84
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 8 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

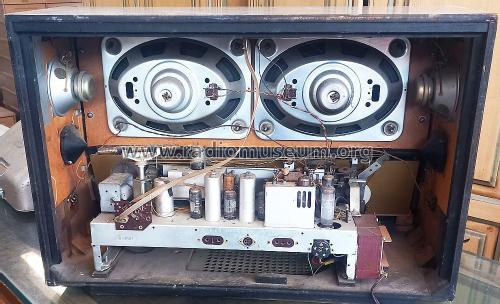

Loudspeaker 6 Loudspeakers
Power out 10 W (unknown quality)
from Radiomuseum.org Model: 6087WD - AEG Radios Allg.Elektricitäts-
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 660 x 445 x 280 mm / 26 x 17.5 x 11 inch
Notes KW-Lupe, drehbare Ferritantenne;

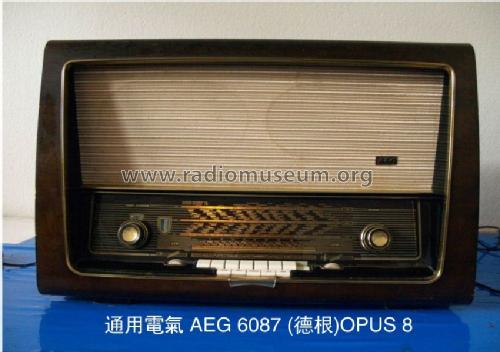

Paralleltype zum Telefunken Opus 8.
Net weight (2.2 lb = 1 kg) 15 kg / 33 lb 0.6 oz (33.04 lb)
Price in first year of sale 529.00 DM
Collectors' prices
Source of data HdB d.Rdf-& Ferns-GrH 1957/58 / Radiokatalog Band 1, Ernst Erb
