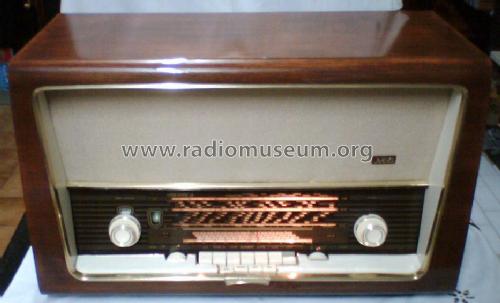

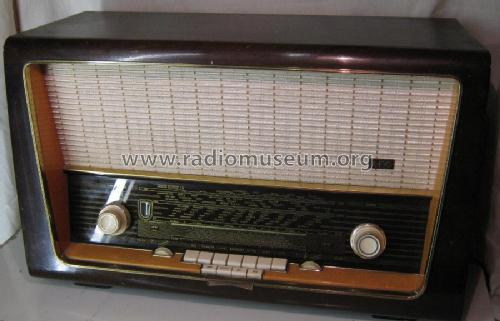

3-D-Raumklang-Super 7078WD

3-D-Raumklang-Super 7078WD; AEG Radios Allg. (ID = 470051) Radio

3-D-Raumklang-Super 7078WD; AEG Radios Allg. (ID = 470052) Radio

3-D-Raumklang-Super 7078WD; AEG Radios Allg. (ID = 1473207) Radio
3-D-Raumklang-Super 7078WD; AEG Radios Allg. (ID = 173932) Radio 3-D-Raumklang-Super 7078WD; AEG Radios Allg. (ID = 173941) Radio
3-D-Raumklang-Super 7078WD; AEG Radios Allg. (ID = 173942) Radio 3-D-Raumklang-Super 7078WD; AEG Radios Allg. (ID = 173935) Radio
3-D-Raumklang-Super 7078WD; AEG Radios Allg. (ID = 173938) Radio 3-D-Raumklang-Super 7078WD; AEG Radios Allg. (ID = 182927) Radio
3-D-Raumklang-Super 7078WD; AEG Radios Allg. (ID = 182928) Radio 3-D-Raumklang-Super 7078WD; AEG Radios Allg. (ID = 378819) Radio
3-D-Raumklang-Super 7078WD; AEG Radios Allg. (ID = 854943) Radio 3-D-Raumklang-Super 7078WD; AEG Radios Allg. (ID = 854944) Radio
Use red slider bar for more.
3-D-Raumklang-Super 7078WD; AEG Radios Allg. (ID = 173932) Radio
AEG Radios Allg.: 3-D-Raumklang-Super 7078WD [Radio] ID = 173932 800x619
Select picture or schematic to display from thumbnails on the right and click for download.
For model 3-D-Raumklang-Super 7078WD, AEG (Radios) Allg.Elektricitäts-Ges.

Country:  Germany
Manufacturer / Brand:  AEG (Radios) Allg.Elektricitäts-Ges.
Year: 1958/1959 Category: Broadcast Receiver - or past WW2 Tuner

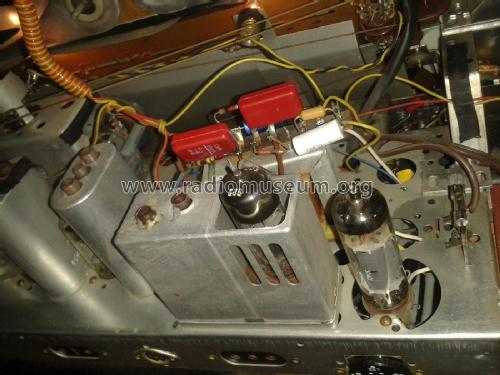

Valves / Tubes 7: ECC85 ECH81 EF89 EF89 EM80 EABC80 EL84
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 8 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker 4 Loudspeakers
Power out 4 W (unknown quality)
from Radiomuseum.org Model: 3-D-Raumklang-Super 7078WD - AEG Radios Allg.Elektricitäts-
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 640 x 400 x 280 mm / 25.2 x 15.7 x 11 inch

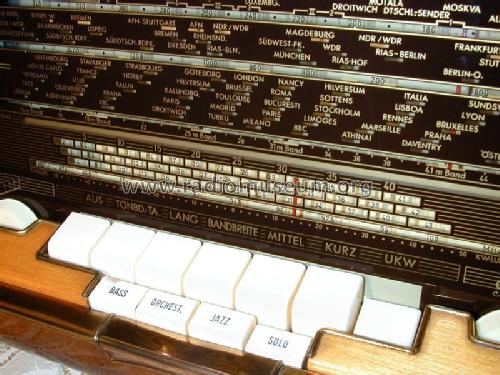

Notes 6078WD und 7078WD haben gleiche technische Daten. 7078WD hat die Klangtaste "Solo", 6078WD die Klangtaste "Sprache".
Net weight (2.2 lb = 1 kg) 14 kg / 30 lb 13.4 oz (30.837 lb)
Price in first year of sale 429.00 DM
Collectors' prices
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1958/59
