70WU; AEG Radios Allg. (ID = 95218) Radio

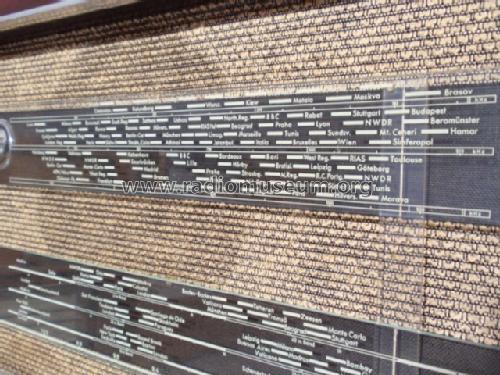

AEG Radios Allg.: 70WU [Radio] ID = 95218 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model 70WU, AEG (Radios) Allg.Elektricitäts-Ges.

Country:  Germany
Manufacturer / Brand:  AEG (Radios) Allg.Elektricitäts-Ges.
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: EF13 ECH11 ECH11 EF15 EM11 EBF11 EAA11 EF15 EL12
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superhet with RF-stage; ZF/IF 472/10700 kHz
Tuned circuits 8 AM circuit(s)     9 FM circuit(s)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 110, 125, 150, 220, 240 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: 70WU - AEG Radios Allg.Elektricitäts-
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 650 x 430 x 315 mm / 25.6 x 16.9 x 12.4 inch
Notes Wellenbereiche: LW, 2× MW, 3× KW, UKW.
Bandbreitenregelung, KW-Lupe.
Net weight (2.2 lb = 1 kg) 24 kg / 52 lb 13.8 oz (52.863 lb)
Price in first year of sale 760.00 DM
Source of data Kat.d. Rundf.Gr.Handel 1950/51 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange Schaltungen der Funkindustrie, Buch 1
Mentioned in Funk-Technik (FT) (5024)
