Bimby 58

Bimby 58; AEG Radios Allg. (ID = 617578) Radio

Bimby 58; AEG Radios Allg. (ID = 617579) Radio

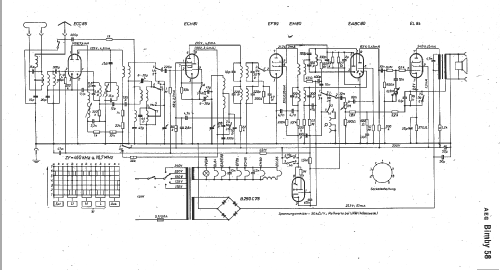

Bimby 58; AEG Radios Allg. (ID = 11765) Radio
Bimby 58; AEG Radios Allg. (ID = 101830) Radio Bimby 58; AEG Radios Allg. (ID = 37320) Radio
Bimby 58; AEG Radios Allg. (ID = 101831) Radio Bimby 58; AEG Radios Allg. (ID = 101832) Radio
Bimby 58; AEG Radios Allg. (ID = 101833) Radio Bimby 58; AEG Radios Allg. (ID = 302251) Radio
Bimby 58; AEG Radios Allg. (ID = 751365) Radio Bimby 58; AEG Radios Allg. (ID = 751367) Radio
Bimby 58; AEG Radios Allg. (ID = 751368) Radio Bimby 58; AEG Radios Allg. (ID = 751371) Radio
Use red slider bar for more.
Bimby 58; AEG Radios Allg. (ID = 101830) Radio
AEG Radios Allg.: Bimby 58 [Radio] ID = 101830 700x456
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bimby 58, AEG (Radios) Allg.Elektricitäts-Ges.

Country:  Germany
Manufacturer / Brand:  AEG (Radios) Allg.Elektricitäts-Ges.
Year: 1957/1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM80 EL84
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Bimby 58 - AEG Radios Allg.Elektricitäts-
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 345 x 230 x 200 mm / 13.6 x 9.1 x 7.9 inch
Notes Baugleich mit Telefunken Jubilate 8.
Net weight (2.2 lb = 1 kg) 5.5 kg / 12 lb 1.8 oz (12.115 lb)
Price in first year of sale 229.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1957/58
