For model Magnetophon 85KL, AEG (Radios) Allg.Elektricitäts-Ges.

Country:  Germany
Manufacturer / Brand:  AEG (Radios) Allg.Elektricitäts-Ges.
Year: 1959–1961 Category: Sound/Video Recorder and/or Player
Valves / Tubes 7: EF86 ECC83 ECC81 ECC83 EM71a EL95 EL95
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker 2 Loudspeakers
Power out 6 W (unknown quality)
from Radiomuseum.org Model: Magnetophon 85KL - AEG Radios Allg.Elektricitäts-
Material Leather / canvas / plastic - over other material
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 395 x 180 x 290 mm / 15.6 x 7.1 x 11.4 inch
Notes Technische Daten wie Magnetophon 85K, jedoch mit 6-W-Gegentaktendstufe. Baugleich mit Telefunken Magnetophon 85 85KL. .
Net weight (2.2 lb = 1 kg) 12 kg / 26 lb 6.9 oz (26.432 lb)
Price in first year of sale 699.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1960/61

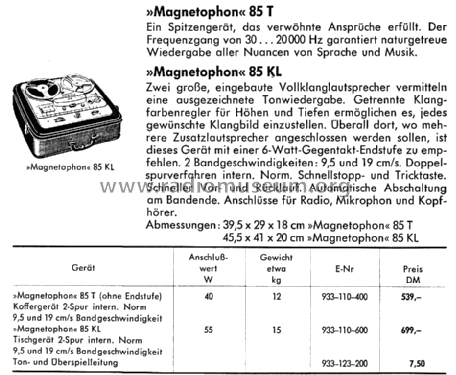

Mentioned in - - Manufacturers Literature (AEG-Preisliste 1960/61)


All listed radios etc. from AEG (Radios) Allg.Elektricitäts-Ges.
Here you find 803 models, 689 with images and 406 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
AEG Radios Allg.: Magnetophon 85KL
Threads: 1 | Posts: 1
Hits: 2231     Replies: 0
aeg: 85KL (85 KL); Magnetophon
Georges Van Campenhout
22.Jan.06
  1 Dear All,

I have a 85 KL for repair, but the magic eye is not an EM 71a, but an EM 87. The round hole for the EM 71a has been used for an additional rotary volume control.

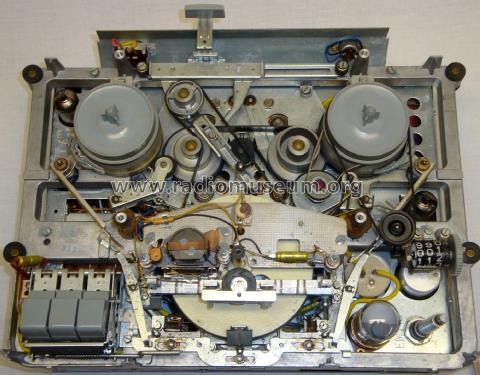

See detail in the pictures.

Where can I find the rubber belts for this recorder?

Best regards
