Magnetophon KL65KS

Magnetophon KL65KS; AEG Radios Allg. (ID = 11757) R-Player

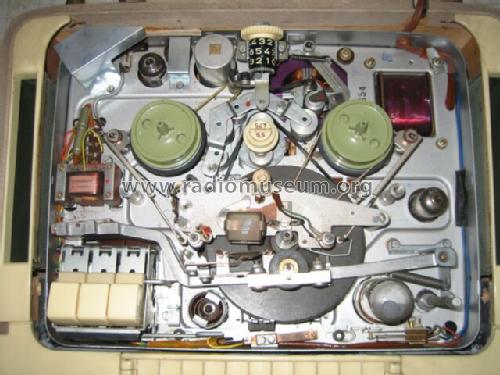

Magnetophon KL65KS; AEG Radios Allg. (ID = 464987) R-Player Magnetophon KL65KS; AEG Radios Allg. (ID = 464989) R-Player
Magnetophon KL65KS; AEG Radios Allg. (ID = 334080) R-Player Magnetophon KL65KS; AEG Radios Allg. (ID = 334069) R-Player

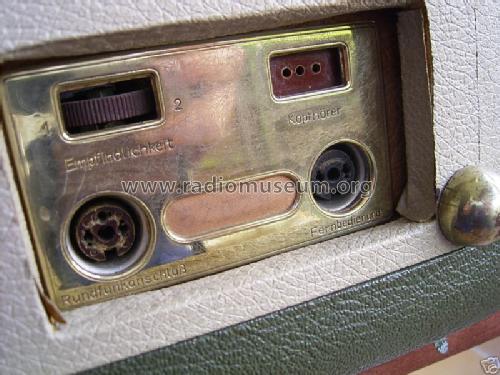

Magnetophon KL65KS; AEG Radios Allg. (ID = 334071) R-Player Magnetophon KL65KS; AEG Radios Allg. (ID = 334079) R-Player
Magnetophon KL65KS; AEG Radios Allg. (ID = 464988) R-Player Magnetophon KL65KS; AEG Radios Allg. (ID = 464990) R-Player
Magnetophon KL65KS; AEG Radios Allg. (ID = 993482) R-Player Magnetophon KL65KS; AEG Radios Allg. (ID = 993483) R-Player
Use red slider bar for more.
Magnetophon KL65KS; AEG Radios Allg. (ID = 464987) R-Player
AEG Radios Allg.: Magnetophon KL65KS [R-Player] ID = 464987 640x490
Select picture or schematic to display from thumbnails on the right and click for download.
For model Magnetophon KL65KS, AEG (Radios) Allg.Elektricitäts-Ges.:
D-AEG_KL65/KS

Country:  Germany
Manufacturer / Brand:  AEG (Radios) Allg.Elektricitäts-Ges.
Year: 1957/1958 Category: Sound/Video Recorder and/or Player
Valves / Tubes 5: EF86 ECC83 ECC81 EL95 EM71a
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Magnetophon KL65KS - AEG Radios Allg.Elektricitäts-
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 380 x 370 x 160 mm / 15 x 14.6 x 6.3 inch
Notes Zweispur; 4,75/9,5 cm/s; Spulen-Ø 13 cm. Baugleich mit Telefunken KL65KS.
Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)
Price in first year of sale 598.00 DM
Collectors' prices
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1957/58
