Midinette 61

Midinette 61; AEG Radios Allg. (ID = 61346) Radio

Midinette 61; AEG Radios Allg. (ID = 61355) Radio
Midinette 61; AEG Radios Allg. (ID = 762313) Radio Midinette 61; AEG Radios Allg. (ID = 978323) Radio
Midinette 61; AEG Radios Allg. (ID = 978324) Radio Midinette 61; AEG Radios Allg. (ID = 978325) Radio
Midinette 61; AEG Radios Allg. (ID = 978326) Radio Midinette 61; AEG Radios Allg. (ID = 978327) Radio
Midinette 61; AEG Radios Allg. (ID = 1012878) Radio Midinette 61; AEG Radios Allg. (ID = 1425872) Radio
Use red slider bar for more.

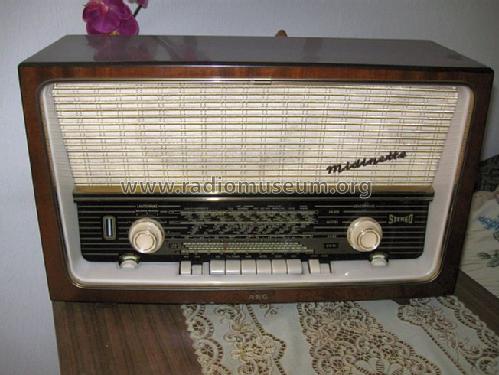

Midinette 61; AEG Radios Allg. (ID = 762313) Radio
AEG Radios Allg.: Midinette 61 [Radio] ID = 762313 653x490
Select picture or schematic to display from thumbnails on the right and click for download.
For model Midinette 61, AEG (Radios) Allg.Elektricitäts-Ges.:
Eigenes Bild und Gerät

Country:  Germany
Manufacturer / Brand:  AEG (Radios) Allg.Elektricitäts-Ges.
Year: 1960/1961 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 EBF89 ECC83 EM84 EBC91 ECL86 EL84
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 240 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Midinette 61 - AEG Radios Allg.Elektricitäts-
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 590 x 360 x 245 mm / 23.2 x 14.2 x 9.6 inch
Notes

Stereo-NF-Verstärker mit 2 Endstufen je 4 W.
Parallelgerät zu TFK Allegro 2183.

Net weight (2.2 lb = 1 kg) 10.2 kg / 22 lb 7.5 oz (22.467 lb)
Price in first year of sale 359.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1960/61

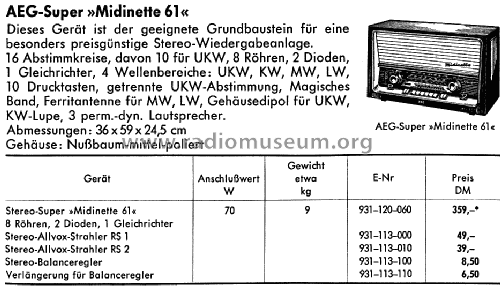

Mentioned in - - Manufacturers Literature (AEG-Preisliste 1960/61)
