Super Herold Stereo

Super Herold Stereo ; AEG Radios Allg. (ID = 1624889) Radio Super Herold Stereo ; AEG Radios Allg. (ID = 1624890) Radio

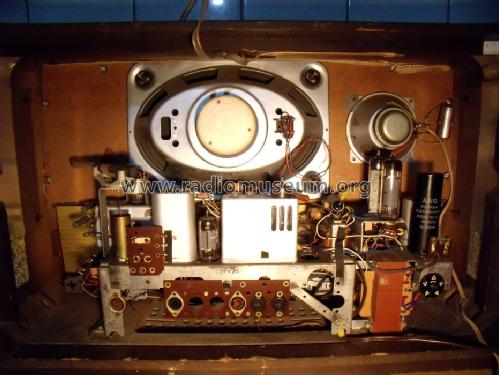

Super Herold Stereo ; AEG Radios Allg. (ID = 1624891) Radio Super Herold Stereo ; AEG Radios Allg. (ID = 1624892) Radio
Super Herold Stereo ; AEG Radios Allg. (ID = 1624893) Radio Super Herold Stereo ; AEG Radios Allg. (ID = 1624894) Radio
Super Herold Stereo ; AEG Radios Allg. (ID = 1624895) Radio Super Herold Stereo ; AEG Radios Allg. (ID = 2144647) Radio
Use red slider bar for more.
Super Herold Stereo ; AEG Radios Allg. (ID = 1624889) Radio
AEG Radios Allg.: Super Herold Stereo [Radio] ID = 1624889 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super Herold Stereo, AEG (Radios) Allg.Elektricitäts-Ges.

Country:  Germany
Manufacturer / Brand:  AEG (Radios) Allg.Elektricitäts-Ges.
Year: 1960 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 EF89 EABC80 EM84 ECC83 ECL82 EL84
Semiconductors (the count is only for transistors) B250C125
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150: 220; 240 Volt
Loudspeaker 2 Loudspeakers
Power out 4 W (undistorted)
from Radiomuseum.org Model: Super Herold Stereo - AEG Radios Allg.Elektricitäts-
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 570 x 345 x 230 mm / 22.4 x 13.6 x 9.1 inch
Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Collectors' prices
Mentioned in -- Original-techn. papers.

Model page created by Joaquín Méndez. See "Data change" for further contributors.
