• Country
• Germany

• Manufacturer / Brand
• AEG (Radios) Allg.Elektricitäts-Ges.

• Year
• 1956/1957

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 20809

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• PCC84 PCF82 EF80 EF80 EF80 PL83 ECC82 ECC82 PCL81 ECH81 PL81 PY83 DY80 EF80 PABC80 PL82 MW43-69

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

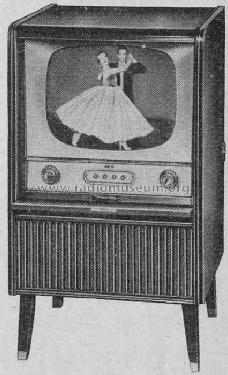

• Model: Visavox FE643SK [Nussbaum] - AEG Radios Allg.Elektricitäts-

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 530 x 900 x 490 mm / 20.9 x 35.4 x 19.3 inch

• Notes
• VHF.

• Net weight (2.2 lb = 1 kg)
• 36.6 kg / 80 lb 9.9 oz (80.617 lb)

• Price in first year of sale
• 978.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1956/57
