Visavox FE643T

Visavox FE643T; AEG Radios Allg. (ID = 184230) Television

Visavox FE643T; AEG Radios Allg. (ID = 184231) Television
Visavox FE643T; AEG Radios Allg. (ID = 733641) Television Visavox FE643T; AEG Radios Allg. (ID = 733645) Television

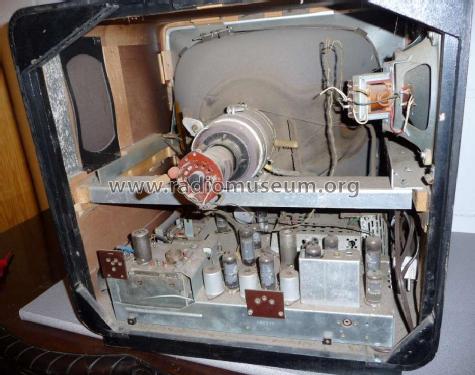

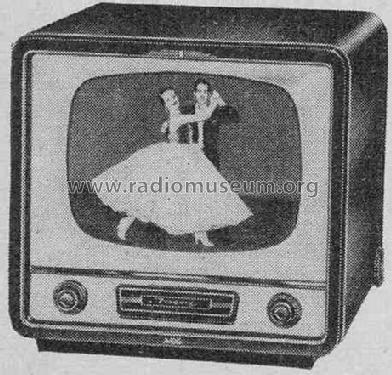

Visavox FE643T; AEG Radios Allg. (ID = 733644) Television Visavox FE643T; AEG Radios Allg. (ID = 313925) Television
Use red slider bar for more.

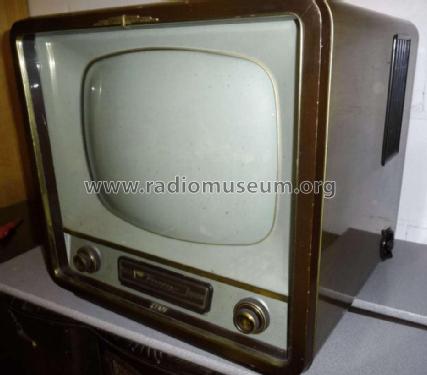

Visavox FE643T; AEG Radios Allg. (ID = 733641) Television
AEG Radios Allg.: Visavox FE643T [Television] ID = 733641 933x818
Select picture or schematic to display from thumbnails on the right and click for download.
For model Visavox FE643T, AEG (Radios) Allg.Elektricitäts-Ges.

Country:  Germany
Manufacturer / Brand:  AEG (Radios) Allg.Elektricitäts-Ges.
Year: 1956/1957 Category: Television Receiver (TV) or Monitor
Valves / Tubes 17: PCC84 PCF82 EF80 EF80 EF80 PL83 ECC82 ECC82 PCL81 ECH81 PL81 PY83 DY80 EF80 PABC80 PL82 MW43-64
Main principle Superheterodyne (common); ZF/IF 25750 kHz
Wave bands Wave Bands given in the notes.
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
Power out
from Radiomuseum.org Model: Visavox FE643T - AEG Radios Allg.Elektricitäts-
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 520 x 480 x 440 mm / 20.5 x 18.9 x 17.3 inch
Notes VHF.
Net weight (2.2 lb = 1 kg) 27 kg / 59 lb 7.5 oz (59.471 lb)
Price in first year of sale 798.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1956/57
