- Country
- Sweden
- Manufacturer / Brand
- AGA and Aga-Baltic Radio AB; Sweden
- Year
- 1957
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 214111
-
- alternative name: AGA-Baltic Radio AB; Stockholm
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 463 kHz; 2 AF stage(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: 2753 - AGA and Aga-Baltic Radio AB;
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 430 x 810 x 370 mm / 16.9 x 31.9 x 14.6 inch
- Notes

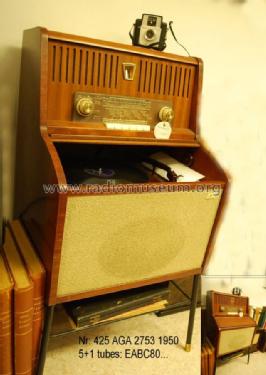

- Radio-phono combination AGA 2753.
Oval speaker 24 x 15 cm.
- Other Models
-
Here you find 309 models, 228 with images and 208 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from AGA and Aga-Baltic Radio AB; Sweden
