Aristona V4A (V4)

Aristona V4A ; NSF Nederlandsche (ID = 972393) Radio
Aristona V4A ; NSF Nederlandsche (ID = 2046661) Radio Aristona V4A ; NSF Nederlandsche (ID = 2046663) Radio
Aristona V4A ; NSF Nederlandsche (ID = 361497) Radio Aristona V4A ; NSF Nederlandsche (ID = 361498) Radio
Aristona V4A ; NSF Nederlandsche (ID = 361499) Radio Aristona V4A ; NSF Nederlandsche (ID = 361501) Radio
Aristona V4A ; NSF Nederlandsche (ID = 361504) Radio Aristona V4A ; NSF Nederlandsche (ID = 2051912) Radio
Use red slider bar for more.
Aristona V4A ; NSF Nederlandsche (ID = 2046661) Radio
NSF Nederlandsche: Aristona V4A [Radio] ID = 2046661 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Aristona V4A (V4), NSF (Nederlandsche Seintoestellen Fabriek); Leuven

Country:  Belgium
Manufacturer / Brand:  NSF (Nederlandsche Seintoestellen Fabriek); Leuven
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: AK2 AF3 ABC1 AL4 AZ1
Main principle Superheterodyne (common); ZF/IF 128 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Aristona V4A - NSF Nederlandsche
Notes

REMARK: This model is comparable with Philips(NL) V4A and Philips(F) V4A. It has the same circuitry as them which means that the author (P.H. Brans) of the schematic present with this model probably has forgotten or judged it necessary to omit the "A", especially because model V4U (any brand) is not listed in Brans. Author Cortenberghe does list the model as V4A and also lists the V4U. Authors Brans and Cortenberghe are in disagreement in case of this model. Radiomuseum.org includes type V4 along V4A because there is a source for it.

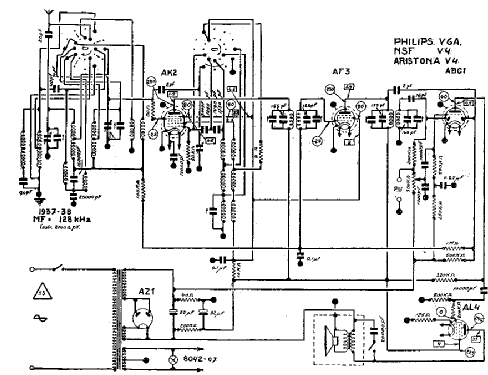

Source of data -- Schematic
Literature/Schematics (1) Brans, P.H. Radio Schema's, Antwerpen (deel 1, p.156)
Literature/Schematics (2) Manuel de la Radio 1940, van Cortenberghe (p.78)

Model page created by Getulio Jimenez-Gomez. See "Data change" for further contributors.
