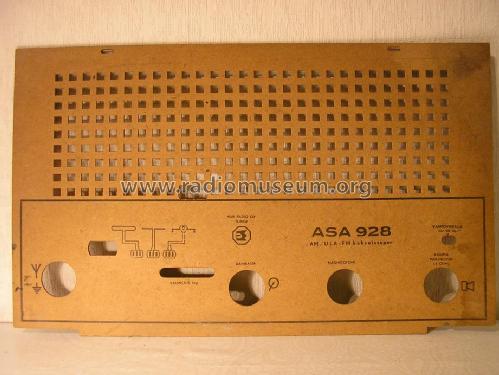

Asa, Turku: 928 [Radio] ID = 1131721 922x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model 928, Asa, Turku

Country:  Finland
Manufacturer / Brand:  Asa, Turku
Year: 1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: EC92 EC92 ECH81 EF85 EM80 EABC80 ECC83 EL84
Main principle Superheterodyne (common); ZF/IF 485 / 10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: 928 - Asa, Turku
Material Wooden case
Shape Tablemodel with Push Buttons.
Notes Rectifier: Selenium B250C100
Dial lamp: 6,3V / 0,5A

Model page created by Timo Rantasaari. See "Data change" for further contributors.
