A104A; Atlantic; Paris (ID = 160105) Radio
Atlantic; Paris: A104A [Radio] ID = 160105 456x468
Select picture or schematic to display from thumbnails on the right and click for download.
For model A104A, Atlantic; Paris

Country:  France
Manufacturer / Brand:  Atlantic; Paris
Year: 1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH42 EAF41 EBC41 EL41 EM4 AZ41
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 110-250 Volt

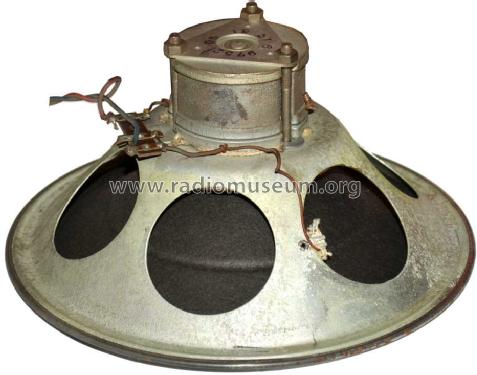

Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out 3 W (unknown quality)
from Radiomuseum.org Model: A104A - Atlantic; Paris
Material Wooden case

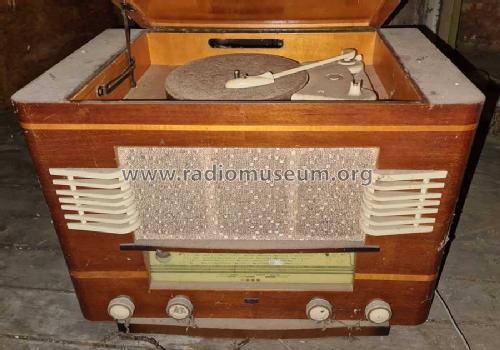

Shape Tablemodel, with any shape - general.
Dimensions (WHD) 515 x 370 x 330 mm / 20.3 x 14.6 x 13 inch
Notes

4 gammes d'ondes: GO 1000 à 2000 m, PO 187 à 590 m, OC 16 à 51 m, OC1 étalée sur 49 m. Tranfo Philips type 5181 de rendement à 400 Hz. Réglage de tonalité à 5 positions dont trois pour la radio et deux pour le PU.

Tourne-disques Philips type 2978 à deux vitesses, pick-up à 2 saphirs.

Ébénisterie en noyer verni rehaussée de deux motifs latéraux en matière plastique ivoire.


Transformator Philips Type 5181, 400 Hz. Mit Philips Plattenspieler Typ 2978 für 33 und 78 Upm und Platten mit 17, 25 und 30 cm Durchmesser. 5 Tonwahlmöglichkeiten, 2 davon im Plattenspieler integriert.

Net weight (2.2 lb = 1 kg) 13 kg / 28 lb 10.1 oz (28.634 lb)
Price in first year of sale 36'700.00 F
Collectors' prices
Source of data -- Original prospect or advert

Model page created by Vitor Oliveira. See "Data change" for further contributors.
