Furka 3D Ch=R30 v. Loewe-Opta, Typ 3732 W

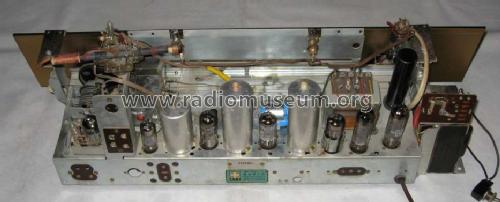

Furka 3D Ch=R30 v. Loewe-Opta, Typ 3732 W; Autophon AG inkl. (ID = 402390) Radio Furka 3D Ch=R30 v. Loewe-Opta, Typ 3732 W; Autophon AG inkl. (ID = 402396) Radio
Furka 3D Ch=R30 v. Loewe-Opta, Typ 3732 W; Autophon AG inkl. (ID = 402395) Radio Furka 3D Ch=R30 v. Loewe-Opta, Typ 3732 W; Autophon AG inkl. (ID = 402394) Radio
Furka 3D Ch=R30 v. Loewe-Opta, Typ 3732 W; Autophon AG inkl. (ID = 402397) Radio
Use red slider bar for more.
Furka 3D Ch=R30 v. Loewe-Opta, Typ 3732 W; Autophon AG inkl. (ID = 402390) Radio
Autophon AG inkl.: Furka 3D Ch=R30 v. Loewe-Opta, Typ 3732 W [Radio] ID = 402390 933x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Furka 3D Ch=R30 v. Loewe-Opta, Typ 3732 W, Autophon AG (inkl. Téléphonie SA); Solothurn

Country:  Switzerland
Manufacturer / Brand:  Autophon AG (inkl. Téléphonie SA); Solothurn
Year: 1959/1959 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 EC92 ECH81 EF89 EM80 EABC80 EL84 EL84
schematic requested
Main principle Superheterodyne (common); ZF/IF 471 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Furka 3D Ch=R30 v. Loewe-Opta, Typ 3732 W - Autophon AG inkl. Téléphonie
Material Wooden case
Dimensions (WHD) 690 x 380 x 300 mm / 27.2 x 15 x 11.8 inch
Notes Ch=R30 Chassis von Loewe-Opta, Typ 3732 WS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
