Melide 2738-3218

Melide 2738-3218; Autophon AG inkl. (ID = 430388) Radio Melide 2738-3218; Autophon AG inkl. (ID = 430389) Radio
Melide 2738-3218; Autophon AG inkl. (ID = 163237) Radio Melide 2738-3218; Autophon AG inkl. (ID = 163228) Radio
Melide 2738-3218; Autophon AG inkl. (ID = 163230) Radio Melide 2738-3218; Autophon AG inkl. (ID = 163232) Radio
Melide 2738-3218; Autophon AG inkl. (ID = 430390) Radio Melide 2738-3218; Autophon AG inkl. (ID = 430391) Radio
Use red slider bar for more.

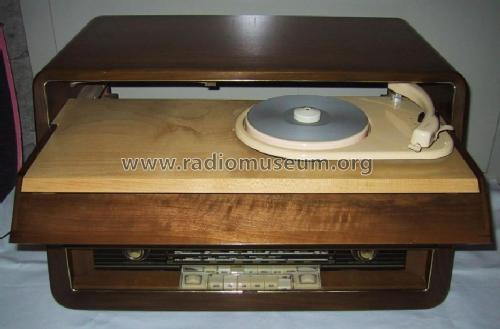

Melide 2738-3218; Autophon AG inkl. (ID = 430388) Radio
Autophon AG inkl.: Melide 2738-3218 [Radio] ID = 430388 600x429
Select picture or schematic to display from thumbnails on the right and click for download.
For model Melide 2738-3218, Autophon AG (inkl. Téléphonie SA); Solothurn

Country:  Switzerland
Manufacturer / Brand:  Autophon AG (inkl. Téléphonie SA); Solothurn
Year: 1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM80 EL84
Main principle Superheterodyne (common); ZF/IF 471 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 110, 127, 150, 220 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Melide 2738-3218 - Autophon AG inkl. Téléphonie
Material Wooden case
Dimensions (WHD) 640 x 400 x 370 mm / 25.2 x 15.7 x 14.6 inch
Notes Ch=R30 Plattenspieler Thorens CB14. Speziell für Autophon (mit HF-TR-Schalter in Klangschalter-Register) von Loewe-Opta hergestelltes Chassis
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb


All listed radios etc. from Autophon AG (inkl. Téléphonie SA); Solothurn
Here you find 239 models, 183 with images and 147 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
