• Country
• Denmark

• Manufacturer / Brand
• Bang & Olufsen (B&O); Struer

• Year
• 1963 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 96649

• • Brand: B&O

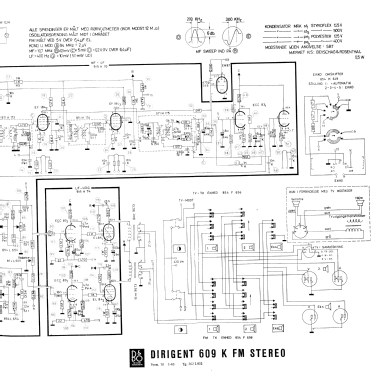

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• ECC85 EF184 EF184 EF184 EM87 ECC83 ECC83 ECC83 EL84 EL84

• Main principle
• Superheterodyne (common); ZF/IF 10700 kHz

• Tuned circuits
• 11 FM circuit(s)

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: Dirigent 609K - Bang & Olufsen B&O; Struer

• Shape
• Book-shelf unit.

• Notes
• Anschluss für Echogerät und TV.

• Price in first year of sale
• 3,870.00 ATS

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
