For model Master 44K, Bang & Olufsen (B&O); Struer:
ebay-seller: anastpro0; 363243019963 Knöpfe falsch.

Country:  Denmark
Manufacturer / Brand:  Bang & Olufsen (B&O); Struer
Brand

B&O
Year: 1943/1944 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH21 UCH4 UBL1 UY1N UM4
Main principle Superheterodyne (common); ZF/IF 440 kHz; 1 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage AC/DC-set / 110-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Master 44K - Bang & Olufsen B&O; Struer
Material Wooden case

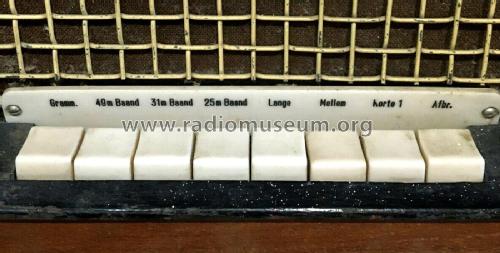

Shape Tablemodel with Push Buttons.
Net weight (2.2 lb = 1 kg) 15 kg / 33 lb 0.6 oz (33.04 lb)

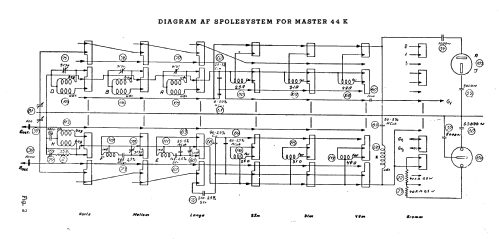

Literature/Schematics (1) - - Manufacturers Literature

Model page created by Fritz Czapek † 29.9.17. See "Data change" for further contributors.
