• Country
• Germany

• Manufacturer / Brand
• Becker, Max Egon, Autoradiowerk Ittersbach bei Pforzheim

• Year
• 1952/1953

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 14020

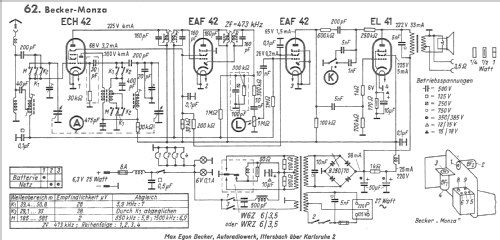

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH42 EAF42 EF41 EL41

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common); ZF/IF 473 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Line / Batteries (any type) / 125; 220 / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch

• Material
• Metal case

• from Radiomuseum.org
• Model: Monza 1 ab 32815 - Becker, Max Egon,

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 195 x 170 x 189 mm / 7.7 x 6.7 x 7.4 inch

• Notes
• Spezial-Empfänger für den Volkswagen mit Einbaumöglichkeit für die VW-Uhr. Außerdem ist das Gerät als Heimempfänger mit Netzbetrieb verwendbar.

• Net weight (2.2 lb = 1 kg)
• 5.8 kg / 12 lb 12.4 oz (12.775 lb)

• Price in first year of sale
• 348.00 DM

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Kat.d.Rundf.GrossH.1952/53 / Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Lange Schaltungen der Funkindustrie, Buch 1

• Mentioned in
• Funkschau (5111)

• Literature/Schematics (1)
• -- Schematic
