Sonatine RBUT 16-1A

Sonatine RBUT 16-1A; Bell Telephone Mfg. (ID = 2286748) R-Player Sonatine RBUT 16-1A; Bell Telephone Mfg. (ID = 2286749) R-Player
Sonatine RBUT 16-1A; Bell Telephone Mfg. (ID = 2286750) R-Player Sonatine RBUT 16-1A; Bell Telephone Mfg. (ID = 2286751) R-Player
Sonatine RBUT 16-1A; Bell Telephone Mfg. (ID = 2286752) R-Player Sonatine RBUT 16-1A; Bell Telephone Mfg. (ID = 2286753) R-Player
Sonatine RBUT 16-1A; Bell Telephone Mfg. (ID = 2286754) R-Player
Use red slider bar for more.
Sonatine RBUT 16-1A; Bell Telephone Mfg. (ID = 2286748) R-Player

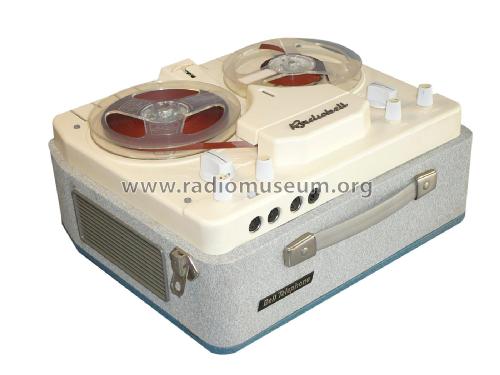

Bell Telephone Mfg.: Sonatine RBUT 16-1A [R-Player] ID = 2286748 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sonatine RBUT 16-1A, Bell Telephone Mfg. Co. (Radiobell); Antwerp

Country:  Belgium
Manufacturer / Brand:  Bell Telephone Mfg. Co. (Radiobell); Antwerp
Brand

Radiobell
Year: 1959 ?? Category: Sound/Video Recorder and/or Player
Valves / Tubes 4: EF86 ECC83 EL84 DM70
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110; 127; 165; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3 W (undistorted)
from Radiomuseum.org Model: Sonatine RBUT 16-1A - Bell Telephone Mfg. Co.
Material Leather / canvas / plastic - over other material
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 350 x 170 x 300 mm / 13.8 x 6.7 x 11.8 inch
Notes

Band speed 9.5 cm/s, 4 track, diameter 15 cm, connection for radio, microphone, external loudspeaker, pick-up and stereo output.

Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)

Model page created by Hendrik van Hooijdonk. See "Data change" for further contributors.
