For model Jester, Berec Radio, London:

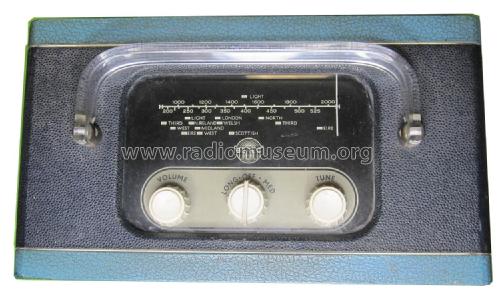

Jester badge has 'r' broken off. Green is background, the handle is clear perspex

Country:  Great Britain (UK)
Manufacturer / Brand:  Berec Radio, London
Year: 1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: DK96 DF96 DAF96 DL96
Main principle Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 1.5 & 90 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: Jester - Berec Radio, London
Shape Portable set > 8 inch (also usable without mains)
Notes

Export branded version of the Ever Ready Sky King.

Uses B136 balanced combination battery pack.

Internal loop aerial with extra loading for Long wave.

A very similar chassis to Model K,(three versions) Model T ( four versions, last Model T used same valves), Sky Queen, Sky Prince and Sky Lord.

Source of data -- Schematic
Circuit diagram reference Radio and TV Servicing books (R&TVS) book
Literature/Schematics (1) Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1275)

Model page created by Keith Staines. See "Data change" for further contributors.
