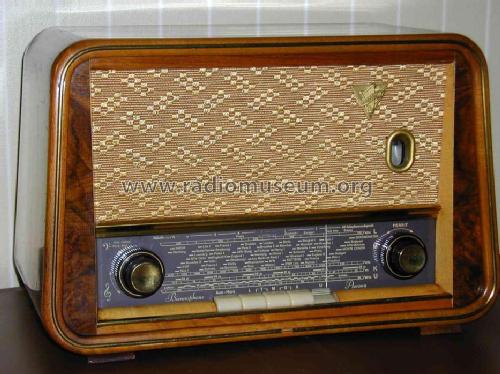

Ascona 5505; Biennophone; Marke (ID = 55781) Radio
Biennophone; Marke: Ascona 5505 [Radio] ID = 55781 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model Ascona 5505, Biennophone; (Marke)

Country:  Switzerland
Manufacturer / Brand:  Biennophone; (Marke)
alternative name

Sport AG Biel || Velectra AG
Year: 1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF85 EABC80 EM80 EL84 EZ80
Main principle Super-Heterodyne (Super in general); ZF/IF 475/10700 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Wired Wireless Receiver (RF!)
Power type and voltage Alternating Current supply (AC) / 125; 150; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Ascona 5505 - Biennophone; Marke
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 410 x 265 x 215 mm / 16.1 x 10.4 x 8.5 inch
Notes

Siehe auch Ascona 5508.

Price in first year of sale 368.00 SFr
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb


All listed radios etc. from Biennophone; (Marke)
Here you find 493 models, 267 with images and 300 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
