4W649M - 4W649H/M

Blaupunkt (Ideal), Berlin, später Hildesheim

Data
Forum
Pictures
Collections

  • Year
  • 1949
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 124684
    • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
    • Brand: Rotstern

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 473 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Ready for FM, has Broadcast, Long Wave, Short wave.
  • Power type and voltage
  • 110; 125; 150; 220; 240 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 18 cm = 7.1 inch
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 4W649M - 4W649H/M - Blaupunkt Ideal, Berlin,
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 480 x 280 x 200 mm / 18.9 x 11 x 7.9 inch
  • Notes
  • Der Blaupunkt 4W649H/M führt im Gegensatz zu Modell 4W649H ein magisches Auge.
  • Net weight (2.2 lb = 1 kg)
  • 8.5 kg / 18 lb 11.6 oz (18.722 lb)
  • Price in first year of sale
  • 333.00 DM
  • Author
  • Model page created by Knut Rothstein. See "Data change" for further contributors.

 Collections | Museums | Literature

Collections

The model is part of the collections of the following members.

 Forum

Forum contributions about this model: Blaupunkt Ideal,: 4W649M - 4W649H/M

Threads: 2 | Posts: 10

Hallo,

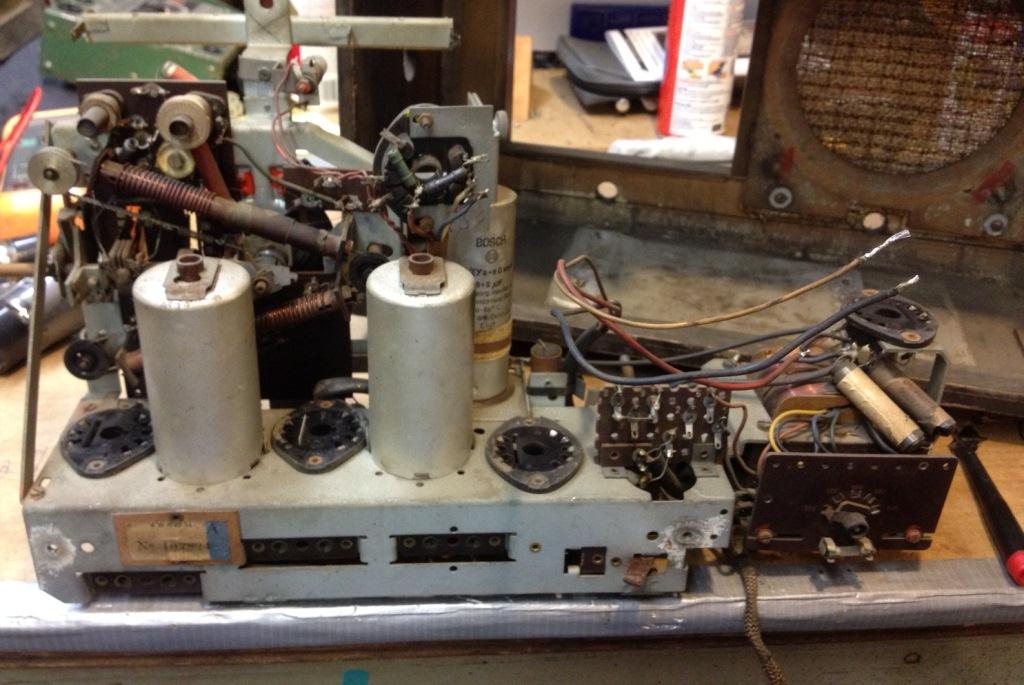

I have recently found a Blaupunkt model 4W649 (M). I see no such number in the listings and the dial shows UKW in the modern band. The tube lineup is the same as the 4W649 HM with an EM11 for the eye. I also see a connection board for UKW on the similar models. Would someone please clarify as to how the FM is added so that the dial would be used. Also is this model somehow previously unlisted? The radio is in the cleaning phase presently and I have not yet compared to the other schematics.

regards, Bill

Attachments

Bill Liers, 12.Jun.12

Weitere Posts (7) zu diesem Thema.

Laut mir vorliegender Original-Blaupunkt-Preisliste für die Geräteserie 1949/50 gab es auch eine Ausführung mit magischem Auge 4W649HM zum Preise von 333 DM.

Knut Rothstein, 13.Jan.08
