4W66K; Blaupunkt Ideal, (ID = 127609) Radio

4W66K; Blaupunkt Ideal, (ID = 27404) Radio

4W66K; Blaupunkt Ideal, (ID = 6593) Radio

4W66K; Blaupunkt Ideal, (ID = 849430) Radio
4W66K; Blaupunkt Ideal, (ID = 200716) Radio 4W66K; Blaupunkt Ideal, (ID = 200717) Radio
4W66K; Blaupunkt Ideal, (ID = 648263) Radio 4W66K; Blaupunkt Ideal, (ID = 648264) Radio
4W66K; Blaupunkt Ideal, (ID = 200714) Radio 4W66K; Blaupunkt Ideal, (ID = 200721) Radio
4W66K; Blaupunkt Ideal, (ID = 648262) Radio 4W66K; Blaupunkt Ideal, (ID = 722708) Radio
4W66K; Blaupunkt Ideal, (ID = 722709) Radio 4W66K; Blaupunkt Ideal, (ID = 722711) Radio
Use red slider bar for more.
4W66K; Blaupunkt Ideal, (ID = 200716) Radio

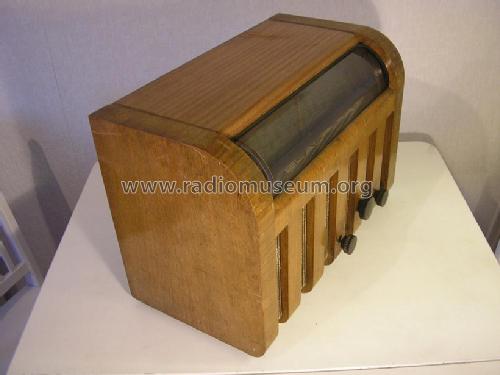

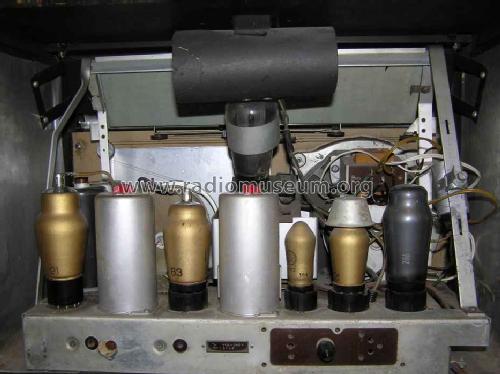

Blaupunkt Ideal,: 4W66K [Radio] ID = 200716 814x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 4W66K AL4, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1936 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ACH1 AH1 AB2 AC2 AL4 AZ1
Main principle Super-Heterodyne (Super in general); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 4W66K [AL4] - Blaupunkt Ideal, Berlin,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 515 x 360 x 270 mm / 20.3 x 14.2 x 10.6 inch
Net weight (2.2 lb = 1 kg) 15 kg / 33 lb 0.6 oz (33.04 lb)
Collectors' prices
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange + Schenk
