6GW78

6GW78; Blaupunkt Ideal, (ID = 74199) Radio

6GW78; Blaupunkt Ideal, (ID = 6622) Radio

6GW78; Blaupunkt Ideal, (ID = 337621) Radio

6GW78; Blaupunkt Ideal, (ID = 682481) Radio

6GW78; Blaupunkt Ideal, (ID = 863581) Radio
6GW78; Blaupunkt Ideal, (ID = 1001910) Radio 6GW78; Blaupunkt Ideal, (ID = 1001914) Radio
6GW78; Blaupunkt Ideal, (ID = 1001912) Radio 6GW78; Blaupunkt Ideal, (ID = 111) Radio
6GW78; Blaupunkt Ideal, (ID = 407629) Radio 6GW78; Blaupunkt Ideal, (ID = 21455) Radio
6GW78; Blaupunkt Ideal, (ID = 407627) Radio 6GW78; Blaupunkt Ideal, (ID = 407631) Radio
6GW78; Blaupunkt Ideal, (ID = 488976) Radio 6GW78; Blaupunkt Ideal, (ID = 707617) Radio
Use red slider bar for more.

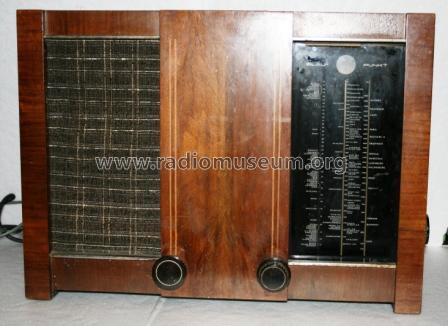

6GW78; Blaupunkt Ideal, (ID = 1001910) Radio
Blaupunkt Ideal,: 6GW78 [Radio] ID = 1001910 820x615
Select picture or schematic to display from thumbnails on the right and click for download.
For model 6GW78, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: CCH1 CF3 CB2 CL4 C/EM2 optional AZ1 U2020 or U920
Main principle Super-Heterodyne (Super in general); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110; 125; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 6GW78 - Blaupunkt Ideal, Berlin,
Material Wooden case
Dimensions (WHD) 538 x 393 x 292 mm / 21.2 x 15.5 x 11.5 inch
Notes variable Bandbreite
Net weight (2.2 lb = 1 kg) 18.2 kg / 40 lb 1.4 oz (40.088 lb)
Price in first year of sale 281.00 RM
Collectors' prices
Source of data Handbuch WDRG 1938 / Radiokatalog Band 1, Ernst Erb

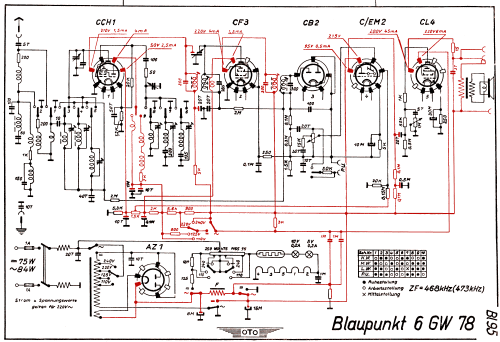

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung

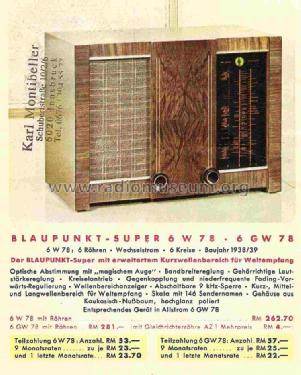

Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Blaupunkt (Ideal), Berlin, später Hildesheim
Here you find 3123 models, 2776 with images and 2116 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
