6W69P

• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 616

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

• Picture
• Schematics

Previous Next

Previous Next

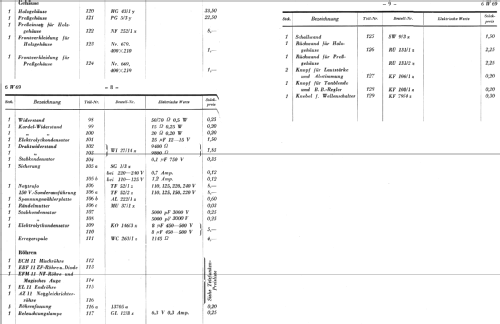

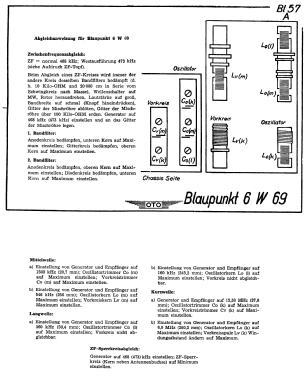

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH11 EBF11 EL11 AZ11 EFM11

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Bakelite case

• from Radiomuseum.org

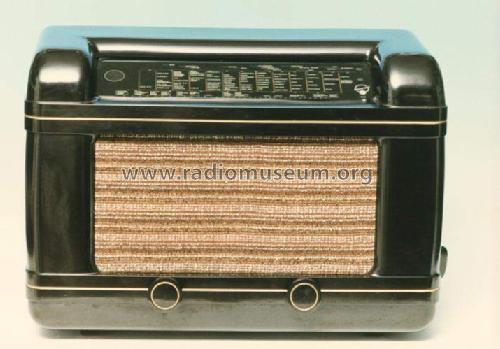

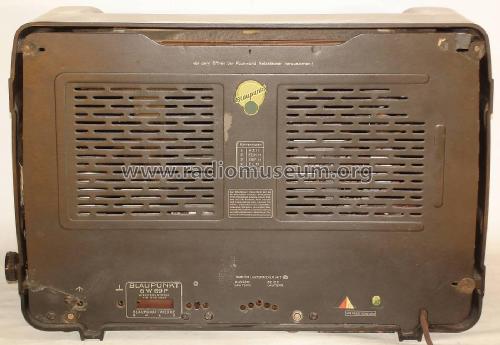

• Model: 6W69P - Blaupunkt Ideal, Berlin,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 557 x 371 x 262 mm / 21.9 x 14.6 x 10.3 inch

• Notes
• variable Bandbreite . Auch geliefert mit ZF 473 kHz (laut dementsprechende Aufdruck am Chassis). 150 Volt Netzspannung verfügbar mittels Sonderausführung

• Net weight (2.2 lb = 1 kg)
• 13 kg / 28 lb 10.1 oz (28.634 lb)

• Price in first year of sale
• 210.00 RM

• Source of data
• Handbuch WDRG 1939 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Schenk-Regelien und FS-Bestückungstab.

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
