Americano ; Blaupunkt Ideal, (ID = 748790) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1958 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 EC92 ECH81 EF89 EM80 EABC80 EL84
Main principle Superhet with RF-stage; ZF/IF 460/10700 kHz; Export model
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 155; 220; 240 Volt
Loudspeaker 5 Loudspeakers
Power out
from Radiomuseum.org Model: Americano [Export] - Blaupunkt Ideal, Berlin,
Material Wooden case
Shape Tablemodel, with any shape - general.
Notes The Blaupunkt Model Americano is an AC operated 7 Tube FM-BC-SW-LW Receiver.
Importer: N. Pickens Import Co., 64-01 Woodside Ave., N. Y.

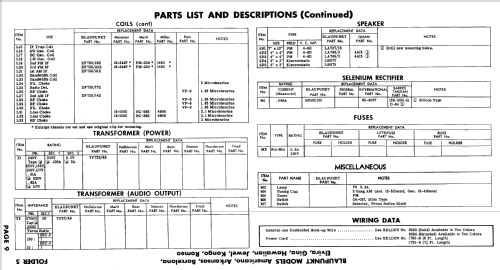

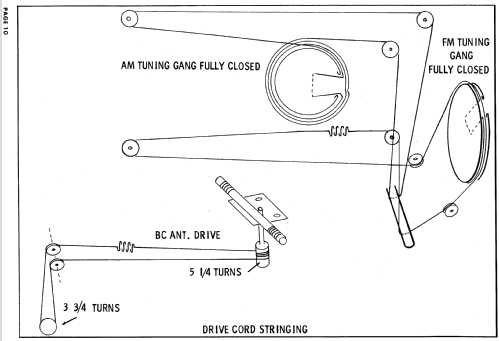

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 11-58, Set 422, Folder 5)

Model page created by Egon Penker. See "Data change" for further contributors.
