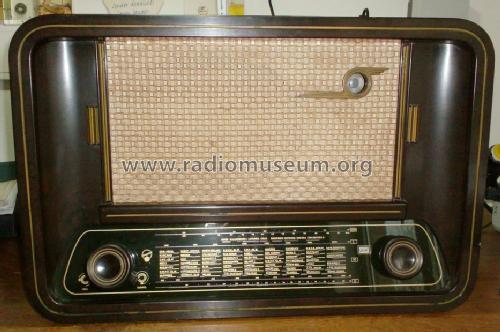

Arioso F52WP

Arioso F52WP; Blaupunkt Ideal, (ID = 620775) Radio

Arioso F52WP; Blaupunkt Ideal, (ID = 620777) Radio

Arioso F52WP; Blaupunkt Ideal, (ID = 620778) Radio

Arioso F52WP; Blaupunkt Ideal, (ID = 11187) Radio

Arioso F52WP; Blaupunkt Ideal, (ID = 659049) Radio

Arioso F52WP; Blaupunkt Ideal, (ID = 721016) Radio
Arioso F52WP; Blaupunkt Ideal, (ID = 22392) Radio Arioso F52WP; Blaupunkt Ideal, (ID = 22539) Radio
Arioso F52WP; Blaupunkt Ideal, (ID = 22542) Radio Arioso F52WP; Blaupunkt Ideal, (ID = 35714) Radio
Arioso F52WP; Blaupunkt Ideal, (ID = 35715) Radio Arioso F52WP; Blaupunkt Ideal, (ID = 35716) Radio
Arioso F52WP; Blaupunkt Ideal, (ID = 35717) Radio Arioso F52WP; Blaupunkt Ideal, (ID = 35718) Radio
Arioso F52WP; Blaupunkt Ideal, (ID = 116997) Radio Arioso F52WP; Blaupunkt Ideal, (ID = 116998) Radio
Use red slider bar for more.
Arioso F52WP; Blaupunkt Ideal, (ID = 22392) Radio
Blaupunkt Ideal,: Arioso F52WP [Radio] ID = 22392 861x625
Select picture or schematic to display from thumbnails on the right and click for download.
For model Arioso F52WP, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1952/1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: EF80 ECH42 EAF42 EAA11 EM11 EL41
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Super-Heterodyne (Super in general); ZF/IF 473/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Arioso F52WP - Blaupunkt Ideal, Berlin,
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 500 x 327 x 212 mm / 19.7 x 12.9 x 8.3 inch
Notes

Die EF80 wird 3-fach ausgenutzt: UKW-HF + UKW-ZF + NF.

Das Gerät hat keine Netztrennung (Spartrafo) !

Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)
Price in first year of sale 249.00 DM
Collectors' prices
External source of data Erb
Source of data Kat.d.Rundf.GrossH.1952/53
