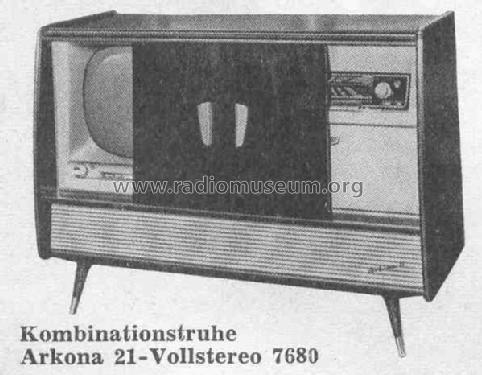

Arkona 21 Vollstereo 7680
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1959/1960
- Category
- Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
- Radiomuseum.org ID
- 101171
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern

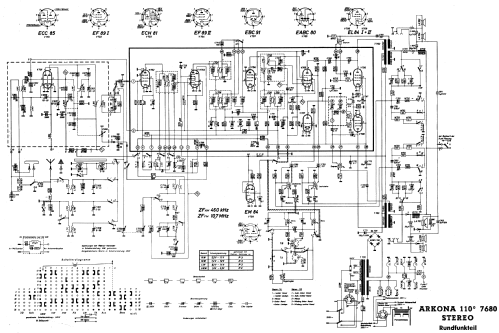

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 19
- Valves / Tubes
- PCC88 PCF82 PCF82 EF80 EF80 PABC80 PL82 EF80 EF80 EF80 ECH81 PCL84 PCL82 ECC81 PL36 PY88 EY86 or DY86 PM84 AW53-88
- Number of Transistors
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Details
- Radio Control (+Remote Wire etc)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 5 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Arkona 21 Vollstereo 7680 - Blaupunkt Ideal, Berlin,
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 1270 x 950 x 520 mm / 50 x 37.4 x 20.5 inch
- Notes
-
Fernseh-Chassis = Sevilla 7650, Mehrpreis für eingebauten UHF-Tuner 126,- DM;
Rundfunk-Chassis = Riviera Vollstereo 2635;
Phono-Chassis = Perpetuum-Ebner Rex de Luxe.Anschluss für Kabelfernbedienung FG 252, Regelung von Lautstärke und Kontrast und Netzschalter Ein/Aus.
- Net weight (2.2 lb = 1 kg)
- 84 kg / 185 lb 0.4 oz (185.022 lb)
- Price in first year of sale
- 1,878.00 DM
- Source of data
- HdB d.Rdf-& Ferns-GrH 1959/60
- Mentioned in
- -- Original-techn. papers. (Blaupunkt Kundendienstschrift, Fernseher 1959/60)
- Literature/Schematics (1)
- - - Manufacturers Literature (Katalog Fernseher 1959/60)
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
