CTV2002 7.667.740

Blaupunkt (Ideal), Berlin, später Hildesheim

Data

Forum

Pictures

Collections

Country
Germany

Manufacturer / Brand
Blaupunkt (Ideal), Berlin, später Hildesheim

Year
1967/1968

Category
Television Receiver (TV) or Monitor

Radiomuseum.org ID
116581

- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern

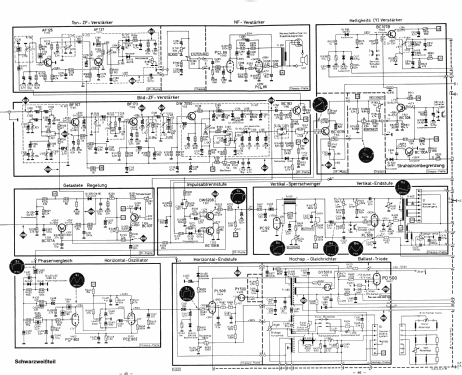

Schematics

CTV2002 7.667.740; Blaupunkt Ideal, (ID = 2669001) Television — Blaupunkt Ideal, CTV2002 7.667.740 (3)

CTV2002 7.667.740; Blaupunkt Ideal, (ID = 2669002) Television — Blaupunkt Ideal, CTV2002 7.667.740 (3)

CTV2002 7.667.740; Blaupunkt Ideal, (ID = 2669003) Television — Blaupunkt Ideal, CTV2002 7.667.740 (3)

CTV2002 7.667.740; Blaupunkt Ideal, (ID = 2669320) Television — Blaupunkt Ideal, CTV2002 7.667.740 (3)

CTV2002 7.667.740; Blaupunkt Ideal, (ID = 2983920) Television — Blaupunkt Ideal, CTV2002 7.667.740 (3)

CTV2002 7.667.740; Blaupunkt Ideal, (ID = 2983921) Television — Blaupunkt Ideal, CTV2002 7.667.740 (3)

CTV2002 7.667.740; Blaupunkt Ideal, (ID = 2983922) Television — Blaupunkt Ideal, CTV2002 7.667.740 (3)

CTV2002 7.667.740; Blaupunkt Ideal, (ID = 2983923) Television — Blaupunkt Ideal, CTV2002 7.667.740 (3)

CTV2002 7.667.740; Blaupunkt Ideal, (ID = 2983924) Television — Blaupunkt Ideal, CTV2002 7.667.740 (3)

CTV2002 7.667.740; Blaupunkt Ideal, (ID = 2983925) Television — Blaupunkt Ideal, CTV2002 7.667.740 (3)

CTV2002 7.667.740; Blaupunkt Ideal, (ID = 2983926) Television — Blaupunkt Ideal, CTV2002 7.667.740 (3)

CTV2002 7.667.740; Blaupunkt Ideal, (ID = 2983927) Television — Blaupunkt Ideal, CTV2002 7.667.740 (3)

CTV2002 7.667.740; Blaupunkt Ideal, (ID = 2983928) Television — Blaupunkt Ideal, CTV2002 7.667.740 (3)

CTV2002 7.667.740; Blaupunkt Ideal, (ID = 2983929) Television — Blaupunkt Ideal, CTV2002 7.667.740 (3)

CTV2002 7.667.740; Blaupunkt Ideal, (ID = 2983930) Television — Blaupunkt Ideal, CTV2002 7.667.740 (3)

CTV2002 7.667.740; Blaupunkt Ideal, (ID = 2983931) Television — Blaupunkt Ideal, CTV2002 7.667.740 (3)

CTV2002 7.667.740; Blaupunkt Ideal, (ID = 2983932) Television — Blaupunkt Ideal, CTV2002 7.667.740 (3)

CTV2002 7.667.740; Blaupunkt Ideal, (ID = 2983933) Television — Blaupunkt Ideal, CTV2002 7.667.740 (3)

CTV2002 7.667.740; Blaupunkt Ideal, (ID = 2983934) Television — Blaupunkt Ideal, CTV2002 7.667.740 (3)

CTV2002 7.667.740; Blaupunkt Ideal, (ID = 2983935) Television — Blaupunkt Ideal, CTV2002 7.667.740 (3)

CTV2002 7.667.740; Blaupunkt Ideal, (ID = 2983936) Television — Blaupunkt Ideal, CTV2002 7.667.740 (3)

CTV2002 7.667.740; Blaupunkt Ideal, (ID = 2983937) Television — Blaupunkt Ideal, CTV2002 7.667.740 (3)

CTV2002 7.667.740; Blaupunkt Ideal, (ID = 2983938) Television — Blaupunkt Ideal, CTV2002 7.667.740 (3)

CTV2002 7.667.740; Blaupunkt Ideal, (ID = 2983939) Television — Blaupunkt Ideal, CTV2002 7.667.740 (3)

CTV2002 7.667.740; Blaupunkt Ideal, (ID = 2983940) Television — Blaupunkt Ideal, CTV2002 7.667.740 (3)

CTV2002 7.667.740; Blaupunkt Ideal, (ID = 2983941) Television — Blaupunkt Ideal, CTV2002 7.667.740 (3)

CTV2002 7.667.740; Blaupunkt Ideal, (ID = 2983942) Television — Blaupunkt Ideal, CTV2002 7.667.740 (3)

CTV2002 7.667.740; Blaupunkt Ideal, (ID = 2983943) Television — Blaupunkt Ideal, CTV2002 7.667.740 (3)

CTV2002 7.667.740; Blaupunkt Ideal, (ID = 2983944) Television — Blaupunkt Ideal, CTV2002 7.667.740 (3)

CTV2002 7.667.740; Blaupunkt Ideal, (ID = 2983945) Television — Blaupunkt Ideal, CTV2002 7.667.740 (3)

CTV2002 7.667.740; Blaupunkt Ideal, (ID = 2543856) Television — Blaupunkt Ideal, CTV2002 7.667.740 (2)
Q: Blaupunkt, Produkt-Katalog '67

CTV2002 7.667.740; Blaupunkt Ideal, (ID = 2543857) Television — Blaupunkt Ideal, CTV2002 7.667.740 (2)
Q: Blaupunkt, Produkt-Katalog '67

CTV2002 7.667.740; Blaupunkt Ideal, (ID = 2543858) Television — Blaupunkt Ideal, CTV2002 7.667.740 (2)
Q: Blaupunkt, Produkt-Katalog '67

CTV2002 7.667.740; Blaupunkt Ideal, (ID = 2543859) Television — Blaupunkt Ideal, CTV2002 7.667.740 (2)
Q: Blaupunkt, Produkt-Katalog '67

CTV2002 7.667.740; Blaupunkt Ideal, (ID = 327244) Television — Blaupunkt Ideal, CTV2002 7.667.740 (2)

CTV2002 7.667.740; Blaupunkt Ideal, (ID = 2543854) Television — Blaupunkt Ideal, CTV2002 7.667.740 (2)

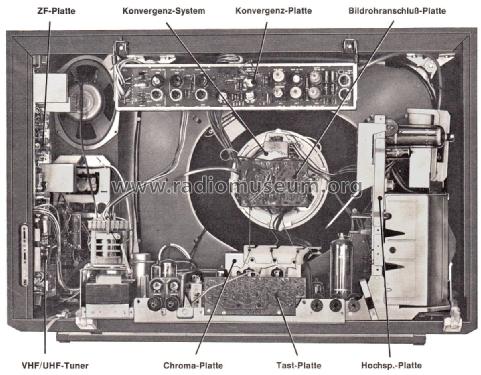

Q: Blaupunkt, Service-Unterlagen

CTV2002 7.667.740; Blaupunkt Ideal, (ID = 2543855) Television — Blaupunkt Ideal, CTV2002 7.667.740 (2)
Q: Blaupunkt, Service-Unterlagen

CTV2002 7.667.740; Blaupunkt Ideal, (ID = 2931536) Television — Blaupunkt Ideal, CTV2002 7.667.740 (2)
Q: Blaupunkt, Produkt-Kataog '67

Click on the schematic thumbnail to request the schematic as a free document.

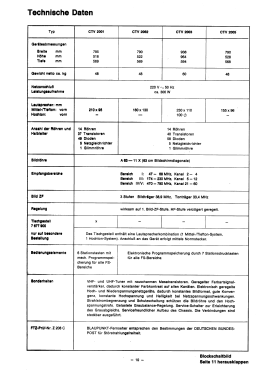

Technical Specifications

Number of Tubes
14

Valves / Tubes
PCL200 PCL200 PCL200 PC92 PL508 PCF802 PL509 PY500 GY501 PD500 PCL86 EF80 PL509 A63-11X ZZ1000

Number of Transistors
40

Main principle
Superhet with RF-stage

Wave bands
Wave Bands given in the notes.

Power type and voltage
Alternating Current supply (AC) / 220 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

Material
Wooden case

from Radiomuseum.org
Model: CTV2002 7.667.740 - Blaupunkt Ideal, Berlin,

Shape
Tablemodel with Push Buttons.

Dimensions (WHD)
790 x 520 x 325 mm / 31.1 x 20.5 x 12.8 inch

Notes
VHF/UHF-Allbereichs-Drucktastentuner. Tischgestell mit 2 Lautsprechern gegen Mehrpreis (105,- DM).

Technisch identisch mit Blaupunkt CTV2005 7.668.140

Jeder Halbleiter-Typ ist einmal gelistet.

Net weight (2.2 lb = 1 kg)
48 kg / 105 lb 11.6 oz (105.727 lb)

Price in first year of sale
2,378.00 DM

Source of data
Handbuch VDRG 1967/1968

Mentioned in
Handbuch RFP (Thiele) 1967/68 S.21

Literature/Schematics (1)
-- Original-techn. papers.

Author
Model page created by Bernd P. Kieck. See "Data change" for further contributors.
