Derby 94720; Blaupunkt Ideal, (ID = 12607) Radio
Blaupunkt Ideal,: Derby 94720 [Radio] ID = 12607 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Derby 94720, Blaupunkt (Ideal), Berlin, später Hildesheim:

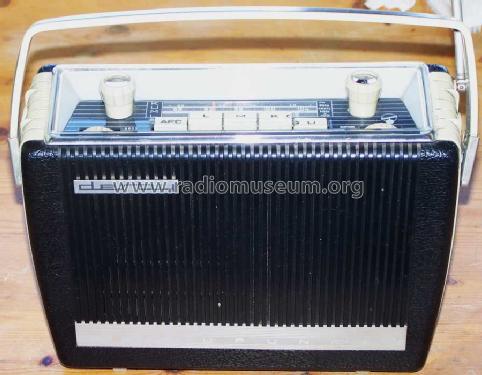

Blaupunkt Derby Typ 94720 in schwarz

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1964/1965 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: AF106 AF135 AF136 AF137 AF138 AC122 AC122 AC122 AC117 AC117
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 1.8 W (unknown quality)
from Radiomuseum.org Model: Derby 94720 - Blaupunkt Ideal, Berlin,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 270 x 200 x 88 mm / 10.6 x 7.9 x 3.5 inch
Notes

Betrieb im Auto über Autohalterung 94950, (52,- DM) aus 6-V- oder 12-V-Autobatterie.
UKW-Bereich bis 104 MHz.

Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
Price in first year of sale 385.00 DM
Collectors' prices
Source of data Handbuch VDRG 1964/1965 / Radiokatalog Band 1, Ernst Erb
Mentioned in Funkschau

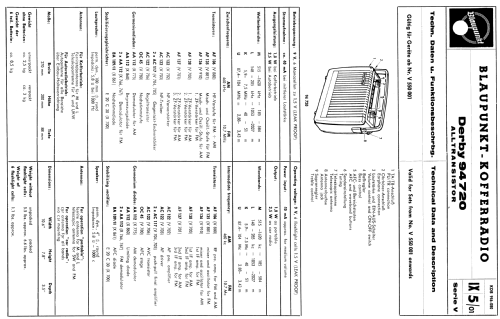

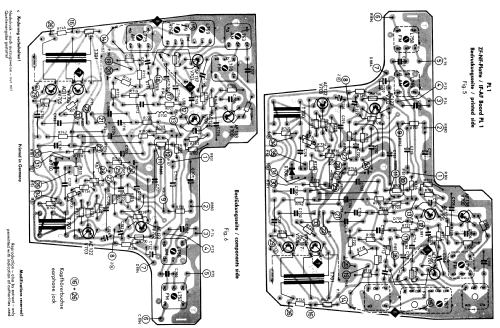

Literature/Schematics (1) -- Original-techn. papers.
