• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 25076

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

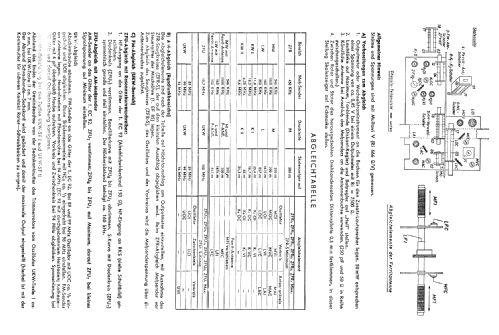

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• EC92 EC92 EF85 EF85 EM85 EABC80 EL84

• Number of Transistors

• Semiconductors
• B250C90

• Main principle
• Superhet with RF-stage; ZF/IF 450/10700 kHz

• Tuned circuits
• 9 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Florenz H3153 - Blaupunkt Ideal, Berlin,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 650 x 420 x 275 mm / 25.6 x 16.5 x 10.8 inch

• Notes
• 2 UKW-Stationstasten frontseitig einstellbar.
  Eingangsbandfilter für MW/LW, fremdgesteuerte additive Mischung für AM.

• Net weight (2.2 lb = 1 kg)
• 14 kg / 30 lb 13.4 oz (30.837 lb)

• External source of data
• Wiesmüller

• Source of data
• Lange, Schaltungen der Funkindustrie

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)
• D.E. Ravalico, Il Radiolibro, 16° edizione, 1957, Hoepli
